Wishlist: Pen drawn drafting quality.

Guildsman
Contributor

With old school pen drafting, lines could be thickened to one side: a simple and wonderfully clear graphic technique, especially in sections. Only one programme that I know of has ever emulated this in 2D: the now defunct Micro GDS. If they could do this pre-2013, surely it can't be a difficult code to write? Would love to see it picked up in Archicad: any takers?

5 REPLIES 5

Eric Milberger
Enthusiast

I grew up drafting with pencil and understand the quality of cad will never match on the fly decisions made by hand.  A Big Part has been making better decisions on materials and their display.  And that takes years to develop.  Currently my drawings are closer to my hand drawings and more precise.  It may be tricks you have to perform or showing a single width material in as part of your complex that has no value but to be seen in the drawing.

Eric Milberger, Architect | Master Planner
Archicad 25
AecoSim
Microstation
Windows 10 64bit

Remote - i7-8550U CPU @ 1.80GHz, 2001 Mhz, 4 Core

Office - Processor i7-8700K CPU @ 3.70GHz, 3696 Mhz, 6 Core

You can create a thickened line type that is offset but you need to trick AC.

Create a thicker line with multiple solid lines, then add a tiny offset line, no more than a dot. AC will read the tiny line, no more than a dot, and centre the line accordingly. But when you use it the dot is so small you can’t see it

Tim Ball

AC25, iMac

User since V5

Guildsman
Contributor

Thanks for the replies Eric and Tim!

Tim I vaguely recall trying your technique way back in AC12 but think that it came apart when I turned corners: I'll give it another go though and report back!

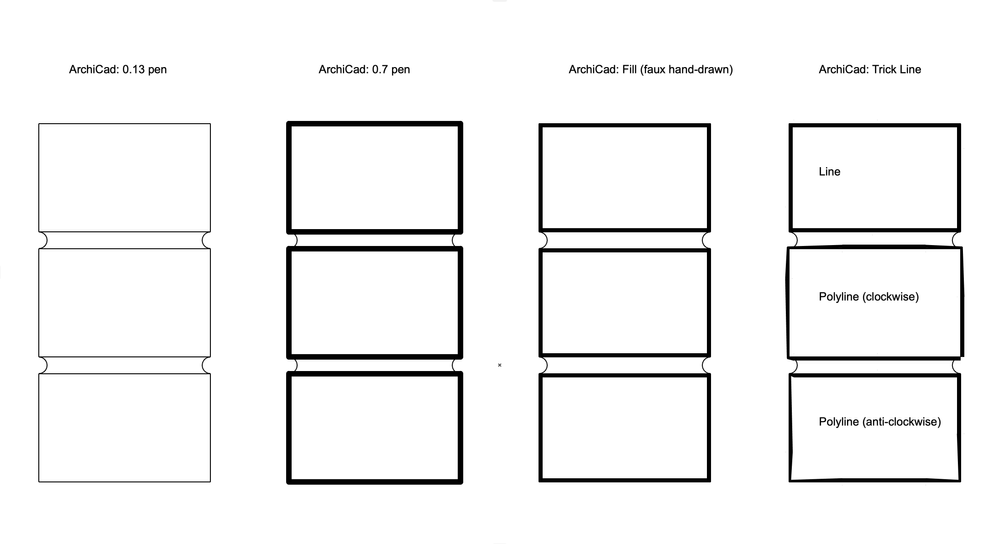

Here's an image comparing the types: Screenshot 2022-01-23 at 04.10.01.png

Vasileios S_
Enthusiast

Yes! We need this! After all, CAD is supposed to help us do our job quicker, better and with more accuracy. We miss this vital feature!
