Help: vert {2}, edge, vect, pgon, how are these commands used?
Constructing a freeform surface definitely requires these instructions.
Unfortunately, I have tried many times but still cannot find their patterns.

[yongler · Accepted solution]

!!!!  point ID
	define style    "AC_STYLE_1" "微软雅黑",     300,      5  ,      0
	set style "AC_STYLE_1"

	text  0.01 , 0 , "1"

	add  1.643906967031, 0.1546438481421,           0
	text  0.01 , 0 , "2"
	DEL 1

	add  0.1230635517156, 1.803123593506,           0
	text  0.01 , 0 , "3"
	DEL 1

	add  0.06145182874897, 0.9003904140308, 0.58755210189
	text  0.01 , 0 , "4"
	DEL 1

	add  4.544338329264, 0.1144655796645,           0
	text  0.01 , 0 , "5"
	DEL 1

	add  4.637554607596, 1.006839271967, 0.58755210189
	text  0.01 , 0 , "6"
	DEL 1

	add  4.720104273318, 1.79709985000,           0
	text  0.01 , 0 , "7"
	DEL 1

	add 1.821001481466, 1.886234655945,           0
	text  0.01 , 0 , "8"
	DEL 1

	add 1.919387322818, 1.131943205577, 0.58755210189
	text  0.01 , 0 , "9"
	DEL 1

!!!!=============================================
vert{2}	 0,            0,           0,  0	!	#1   VertId=0
vert{2}	1.643906967031, 0.1546438481421,     0,  0	!	#2   VertId=0
vert{2}	0.1230635517156, 1.803123593506,      0, 0	!	#3   VertId=0

vert{2}	0.06145182874897, 0.9003904140308, 0.58755210189, 0	!	#4   VertId=0
vert{2}	4.544338329264, 0.1144655796645,           0, 0	!	#5   VertId=0
vert{2}	4.637554607596, 1.006839271967, 0.58755210189, 0	!	#6   VertId=0

vert{2}	4.720104273318, 1.79709985000,           0, 0	!	#7   VertId=0
vert{2}	1.821001481466, 1.886234655945,           0,0 !	#8   VertId=0
vert{2}	1.919387322818, 1.131943205577, 0.58755210189 ,0	!	#9   VertId=0

pen penAttribute_3
edge	   1,    2,    1,    0,  0			!	#1   EdgeId=0
edge	   1,    4,    1,    0,  0			!	#2   EdgeId=0
edge	   2,    4,    1,    2,     2			!	#3   EdgeId=0

edge	   3,    4,    3,    0, 0			!	#4   EdgeId=0
edge	   2,    5,    5,    0, 0			!	#5   EdgeId=0
edge	   9,    4,    2,    3, 0			!	#6   EdgeId=0

edge	   3,    9,    3,    4,      2		!	#7   EdgeId=0
edge	   8,    3,    4,    0, 0			!	#8   EdgeId=0
edge	   5,    6,    6,    0, 0			!	#9   EdgeId=0

edge	   5,    9,    5,    6,      2		!	#10  EdgeId=0
edge	   2,    9,    2,    5,      2		!	#11  EdgeId=0
edge	   8,    9,    4,    8,      2		!	#12  EdgeId=0

edge	   6,    9,    6,    7, 0			!	#13  EdgeId=0
edge	   6,    7,    7,    0, 0			!	#14  EdgeId=0
edge	   7,    9,    7,    8,      2		!	#15  EdgeId=0
edge	   7,    8,    8,    0, 0			!	#16  EdgeId=0

vect	0.05157243428629, -0.5482292703434, 0.8347364561109	!	#1
vect	0.06576518232058, -0.527687296239, 0.8468890471498	!	#2
vect	-0.06823318971576, 0.5474901174812, 0.8340256609252	!	#3
vect	-0.02994677287806, 0.611804975783, 0.7904415616612	!	#4
vect	-0.007116927009464, -0.5137642582209, 0.8579018803597	!	#5
vect	-0.02521742494584, -0.5479058692778, 0.8361598171941	!	#6
vect	0.02736588562897, 0.594586060484, 0.8035661298125	!	#7
vect	0.01893749272581, 0.6159405124258, 0.78756501733	!	#8

material materialAttribute_1
pgon	   3,    1,   0,					!	#1   PolyId=0
		   1,		   3,		  -2
material materialAttribute_1
pgon	   3,    2,   0,					!	#2   PolyId=0
		  -3,		  11,		   6
material materialAttribute_1
pgon	   3,    3,   0,					!	#3   PolyId=0
		   4,		  -6,		  -7
material materialAttribute_1
pgon	   3,    4,   0,					!	#4   PolyId=0
		   7,		 -12,		   8
material materialAttribute_1
pgon	   3,    5,   0,					!	#5   PolyId=0
		   5,		  10,		 -11
material materialAttribute_1
pgon	   3,    6,   0,					!	#6   PolyId=0
		   9,		  13,		 -10
material materialAttribute_1
pgon	   3,    7,   0,					!	#7   PolyId=0
		 -13,		  14,		  15
material materialAttribute_1
pgon	   3,    8,   0,					!	#8   PolyId=0
		  12,		 -15,		  16

body	-1

[Pertti Paasky]

Hello yongler.

In GDL manual You find Primitive elements in pages 137-149 (AC 26 manual).

After studying these You may have new  spesific questions.

[yongler]

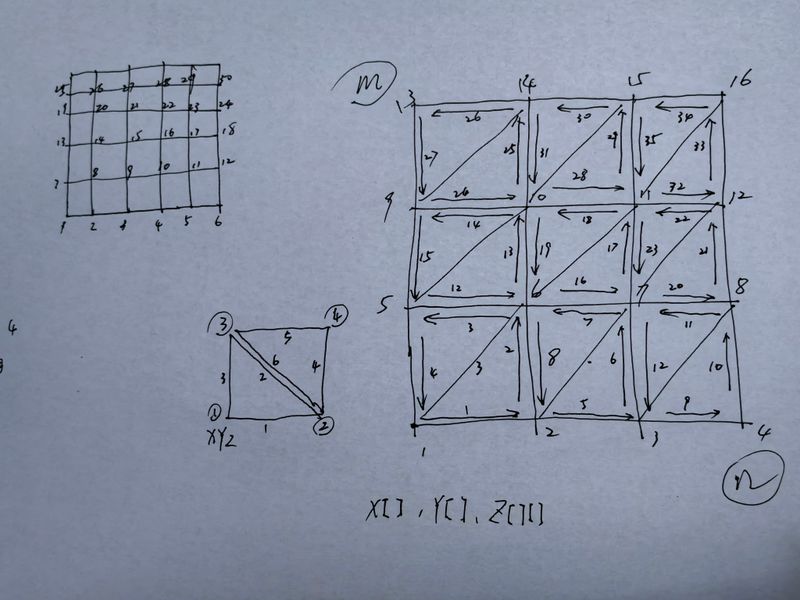

After two days of contemplation and experimentation, I seem to have learned some about how VECT, EDGE, and PGON operate.





[yongler · Accepted solution]

!!!=========================
 lin_pen = 2
 mat1 = 115
 mat2 = 425
 mat3 = 29
dim x[] ,y[] ,z[][]
x[1] = 0
y[1] = 0

m=  30
n =  30

for k = 2 to n
for  i = 2 to m
	x[k] = x[k-1]  + 0.15
	y[i] = y[i-1]  +  0.15
	z[i][k] = 0.25* sin( i*K*(4*360/(m*n)))
next i
next k
!!!=========================
base

for  k = 1 to  m -1
for  i = 1 to   n -1
		vert{2}  x[i] ,       y[k]  ,  z[i][k],    0
		vert{2}   x[i+1] ,  y[k]  ,    z[i+1][k],  0
		vert{2}   x[i] ,      y[k+1]  , z[i][k+1], 0
		vert{2}   x[i+1] ,  y[k+1]  , z[i+1][k+1], 0

	pen lin_pen
	edge  1,  2 , -1, -1,    2 !   1+2+4+8
	edge  2  ,3 , -1, -1,    2  !   1+2+4+8
	edge  3 ,  1  , -1, -1,  2  !   1+2+4+8

	edge  2 , 4  , -1, -1,  2  !   1+2+4+8
	edge  4 , 3  , -1, -1,  2!   1+2+4+8
	edge  3 , 2  , -1, -1,  2 !   1+2+4+8

	 IF z[i][k]< -0.15  then material  mat1
	 IF z[i][k] >=-0.15 and  z[i][k] < 0.1   then material  mat2
	 IF z[i][k] >=0.1    then material  mat3

	pgon 3, 0, -1, 1,2,3
	pgon 3, 0, -1, 4,5,6

body -1
	next  i
	next  k
!!!=========================

[yongler · Accepted solution]

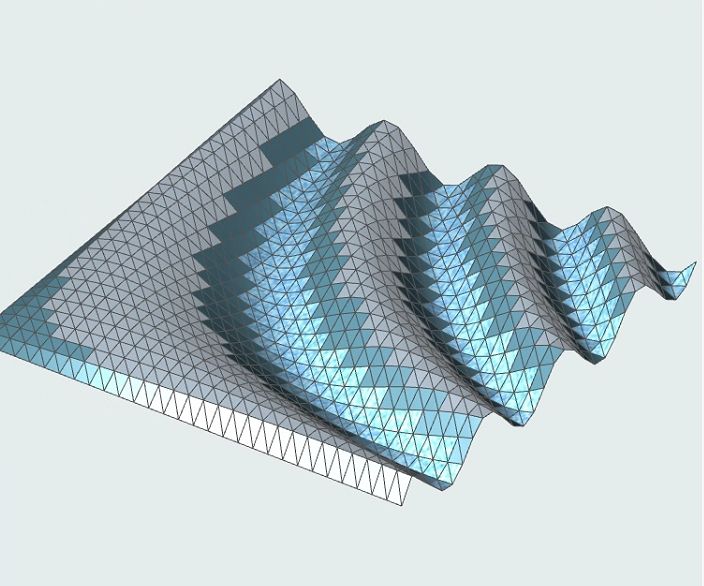

Primitive elements can control the material representation of each unit of the surface, thereby expressing the analysis of mountain elevation, slope, etc. The GDL script is still being further optimized.
