Sections: Fill transparency

Tendenz
Participant

Hi!

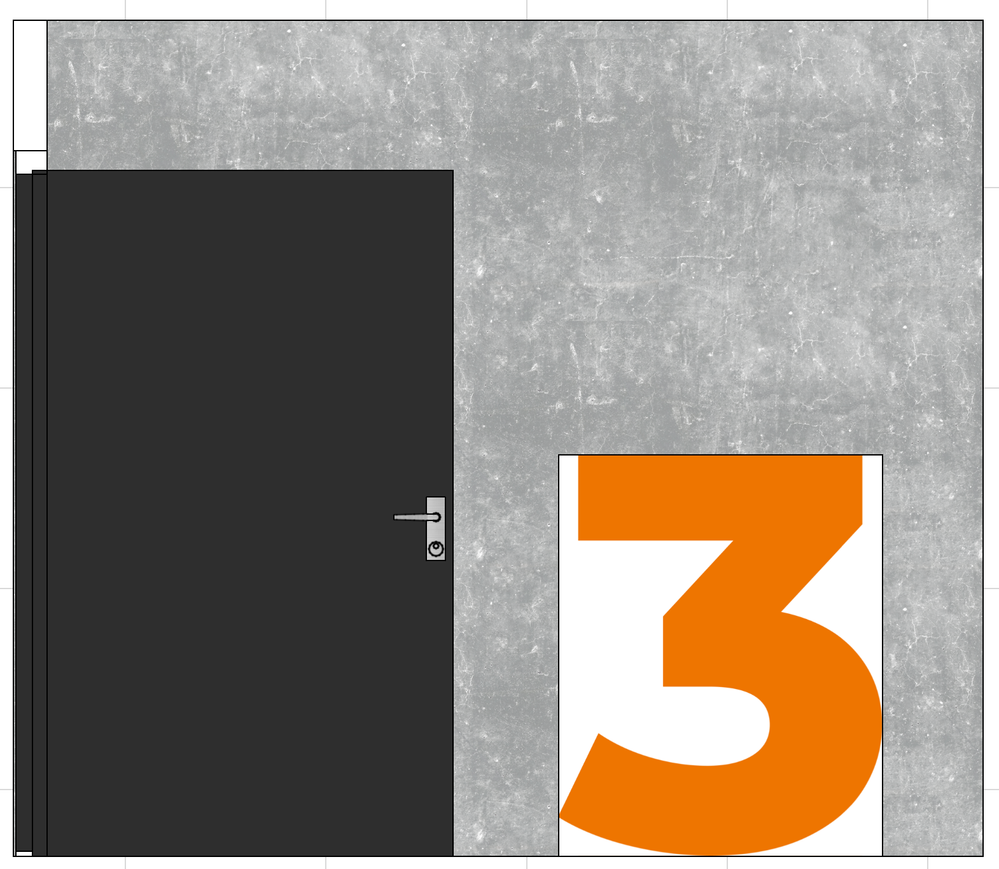

I'm trying to have a transparent fill in a section, but it turns up white. See attachment. Is there any way I can get the concrete of the wall behind the number to show through?



The number is constructed of a thin wall with the material on it; a transparent png with transparency checked in alfa channels.




Skjermbilde 2021-11-25 kl. 09.07.03.png

iMac OS X 11.6

2,3 GHz Intel Core i9, 16 GB 2667 MHz DDR4

ArchiCAD 25
8 REPLIES 8

DGSketcher
Virtuoso

@Tendenz have you considered using the Text 3D object, which should be in your library if this is a 3D feature?

Apple iMac macOS Big Sur / AC24UKI (most recent builds)

Thanks, yes, this was probably a poor example. If it was just this number I would, but I also have quite a few other complicated designs.

iMac OS X 11.6

2,3 GHz Intel Core i9, 16 GB 2667 MHz DDR4

ArchiCAD 25

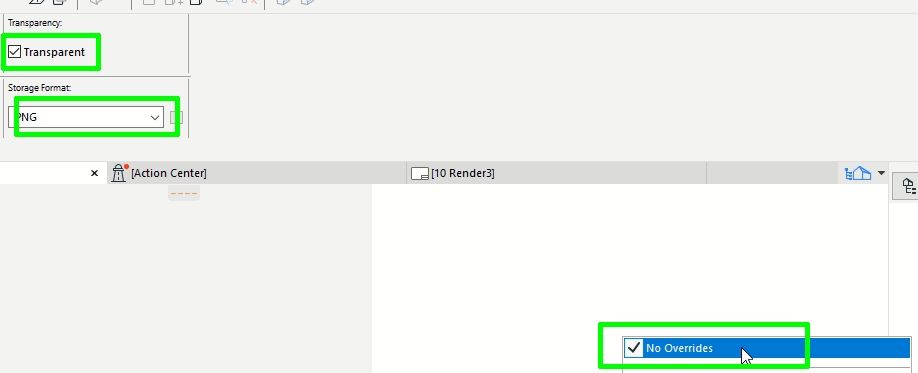

Be sure that you import PNG with alpha channel. Also check if these Picture settings are set correctly and check if Graphic override not interfering - try to use "No override" function.


PNG transparent import.jpg

GRAPHISOFT BIM Manager Training Week attendee

Archicad v9 - v25 - INT / NOR

Yes it is PNG with alpha channel. Turns out perfect in 3D, just not sections.



Where are the first two settings you screens hotted, transparency and png? No overrides is on..

iMac OS X 11.6

2,3 GHz Intel Core i9, 16 GB 2667 MHz DDR4

ArchiCAD 25

Transparency and PNG appears in Figure Selection Settings. Just select picture and go to it's settings.

GRAPHISOFT BIM Manager Training Week attendee

Archicad v9 - v25 - INT / NOR

Thanks, to use figure is definitely a work around. But I also visualize this in 3D, so I had made the design as a material with transparency, and put it on a wall. And that's when the transparency turns up white. I was hoping to not do double work..

iMac OS X 11.6

2,3 GHz Intel Core i9, 16 GB 2667 MHz DDR4

ArchiCAD 25

If you wish to make both 2D and 3D correct representation. I would make custom profile of "3" number shape and have it as 3D. Not hard to make such shape as custom profile by redrawing.

GRAPHISOFT BIM Manager Training Week attendee

Archicad v9 - v25 - INT / NOR

Do you have transparency turned on for the section view?

AC 24, Twinmotion current, Windows 11, Msi 10UG with rtx 3070, wacom intuos pro m, Wacom Cintiq Pro 16, razer Tartarus pro.
