3D DWG import from Greytech Engineering Software

Robert Fuchs
Booster
I have tired importing a dwg file from our structural engineer. The software he uses is call Greytech I believe. We have been trying to import his structural information into our AC model. All I can seem to get are the bolts and some 3D polylines where the flanges are filleted to show up. I have tried all the options for opening this file and I can't get it to work. They can open the file in autocad and it show up just fine. We are using AC10-1183 on osx 10.4.9. Do you think it is on his end or ours? I am attaching a test file he had sent me. There are supposed to be beams, columns and bolts and like I said
only the bolts show up as solids. Anyone else import 3D structural drawings for their projects?

Thanks,

Robert Fuchs
Robert Fuchs
Miller Bosksus Lack Architects, P.A.
2x2.26GHz Quad-Core Intel Xeon w/10 GB RAM
Mac OSX 10.6.4, AC 14 (3004 USA Full)
1 REPLY 1
Robert Fuchs
Booster

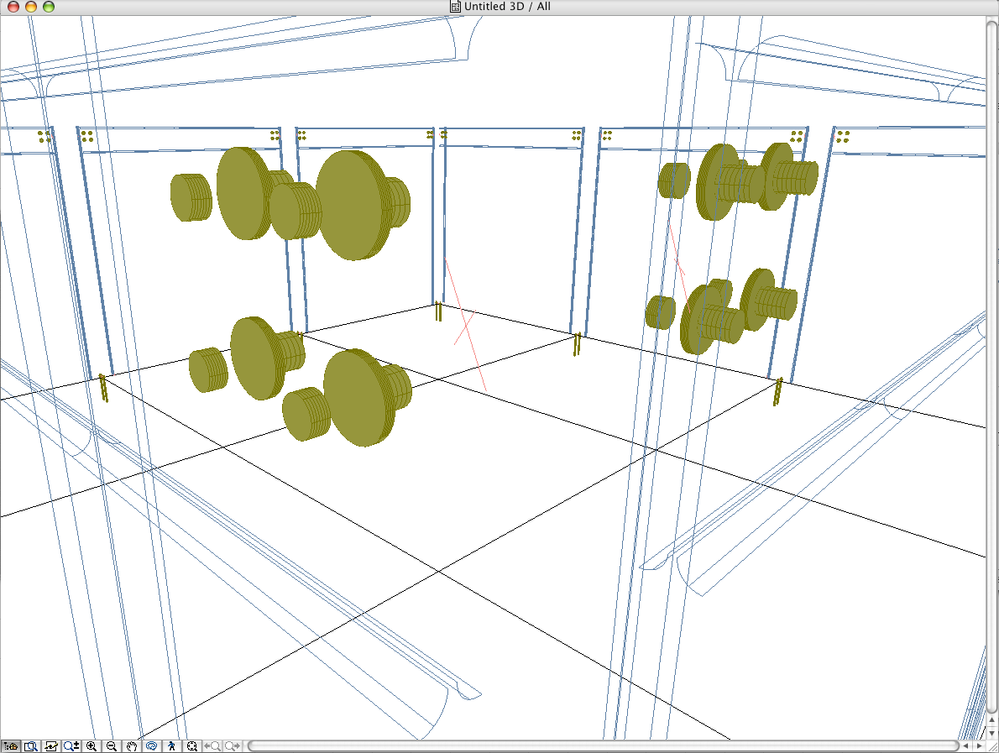

The file is too large but here are some screen shots of what I get.
The bolts are also the only thing that show up when it is rendered.
