IFC import and mapping rules in Scheme Setup

Anonymous
Not applicable

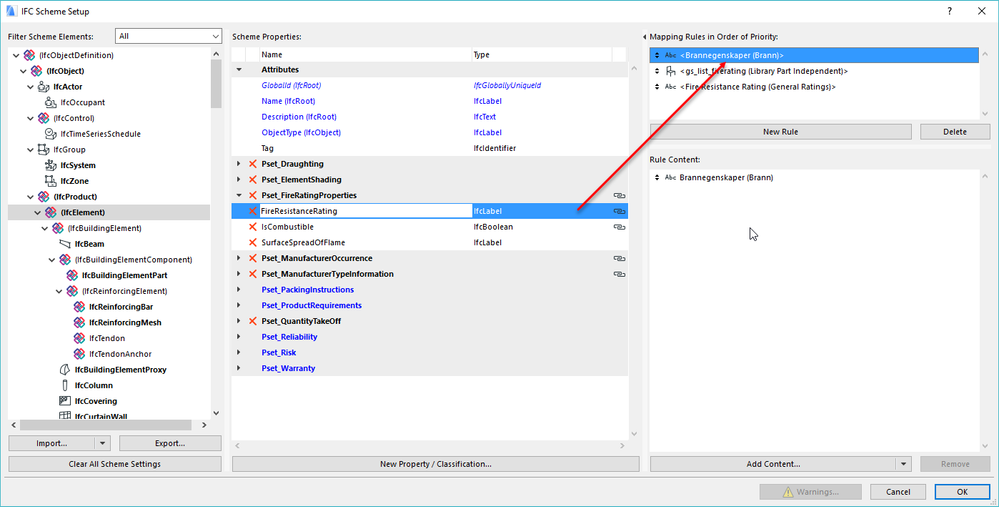

Hi. I have mapped custom properties to IFC propertyes in IFC Scheme Setup, but if I want to import a IFC file where a consultan have enriched certain properties, the mapping dosnt goes the opposite way.

I want to export IFC file and give it to the fire consultants.

The fire consultant give the model correct values in the property Fire resistance rating in his software, and send the IFC file back to me.

Im using the tool "update with IFC" and "override existing project properties" to receive the new data.

I want to override colors in my model with the new data, but this is not possible to override colors from IFC properies.

Is this possible? Is it possible to update ArchiCAD properties with IFC files?
