Cabinet Door Pivot Lines

Anonymous
Not applicable

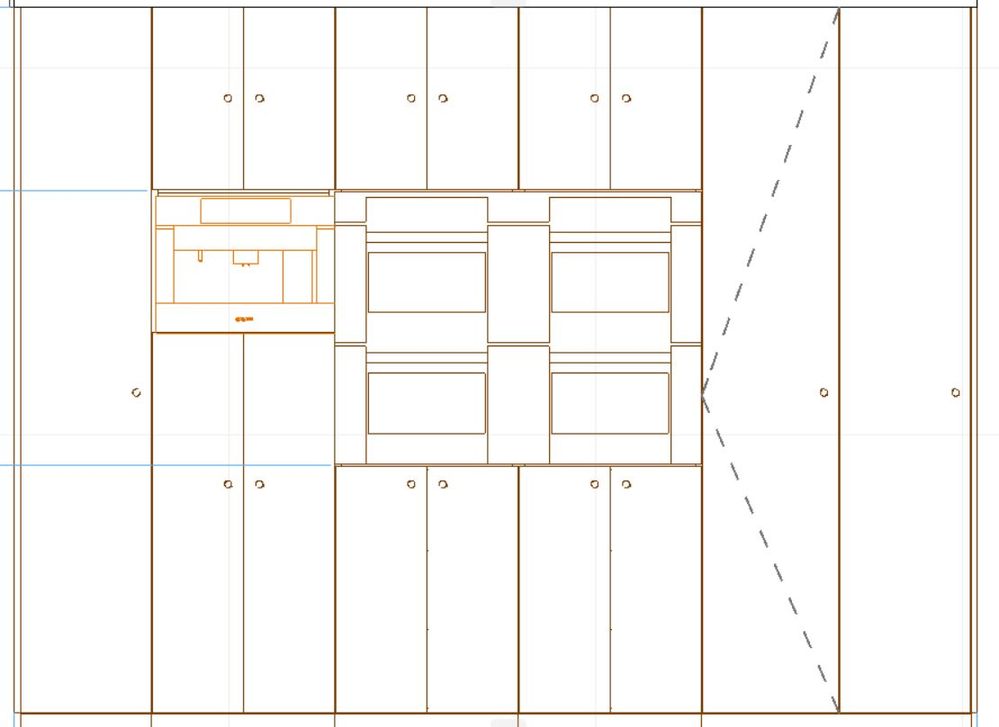

How do I make the pivot lines of the cabinet doors to show? The pivot lines on one of the cabinets are drawn as an example. Thanks.

Cabinet Door.JPG
4 REPLIES 4
Barry Kelly
Moderator
Many objects have global controls in the Model View Options.
You may find a setting for this there.

If so remember to save the change in the MVO schemes - otherwise when you change views you will just invoke the original scheme with the setting turned off.

Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Anonymous
Not applicable
This is a great question. From what I've seen, there are no model view options for cabinet door opening line. How are people doing this?
Anonymous
Not applicable
Cadimage cabinets display opening or pivot lines on the doors
Barry Kelly
Moderator
rpinkham wrote:
This is a great question. From what I've seen, there are no model view options for cabinet door opening line. How are people doing this?
If there is no MVO setting then I would hope that you have control in the actual object parameters.
This will all depend on the object you are using and if it has been scripted into it as an option.
Is it a standard Graphisoft object?

Barry.
One of the forum moderators.
