Does anyone know how to create a 45 degree cut in to a wall

DanielG
Participant


Hi everyone,



I’m architecture student so I’m quite new to Archicad, does anyone know how to cut the ends of the wall to 45 degree angel so the wall becomes pointed. Due to the walls being so close to another it doesn’t want to create that point. Any suggestions would be must appreciated.

Thanks

5 REPLIES 5
Barry Kelly
Moderator

If your wall reference lines are on the outside of the walls and they meet at one point, the walls should trim to a point.








Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
DGSketcher
Legend

@DanielG An alternative to the normal solution @Barry Kelly has shown would be to form the closing using the wall tool in polygon mode.



https://help.Graphisoft.com/AC/25/INT/#t=_AC25_Help%2F150_UserInterfaceToolSettings%2F150_UserInterf...

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)

Hey Barry,

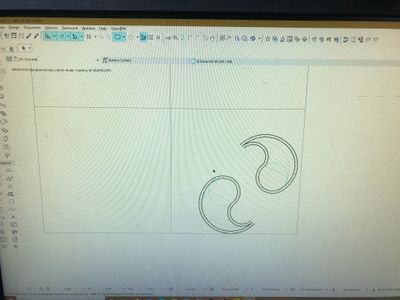

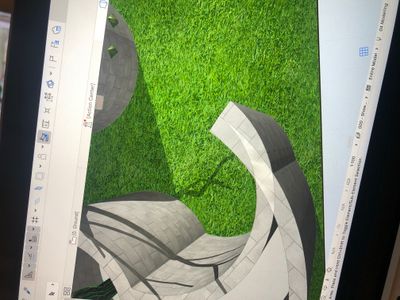

Thank you very much for that, that helped to fix it on the plan. The only issue is when looking at the 3D plan it didn’t change. Would you know any fix with that.  



Hello @DanielG,



You are able to stop your walls and create a column with your own complex profile to join them.

Christophe - FRANCE
Archicad Designer and Teacher
Archicad 15 to 27 FRA FULL

OS 11.6 Big Sur - MacBook Pro 2017 - 16Go RAM
"Quality is never an accident ; it's always the result of an intelligent effort" John Ruskin

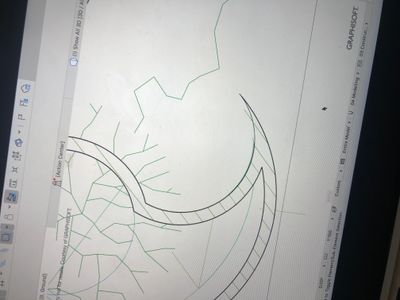

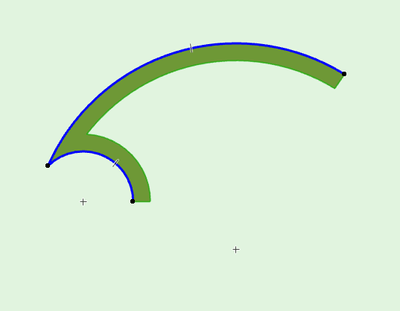

Can you select the walls and show where the reference lines are?



I have been trying ref lines in different sides and it seems to be fine if they join at one point.

I thought it might also be the angle of the join, but that doesn't seem to matter either.








Barry

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
