Curved dimensions through three points

gaetano mattei
Participant

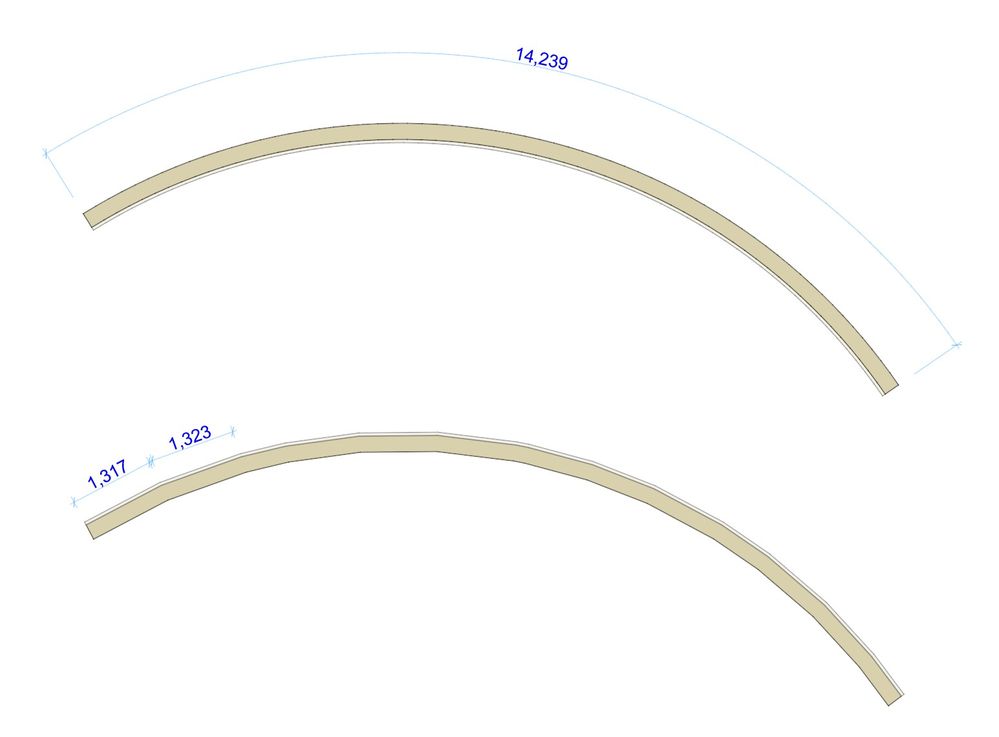

Sometimes an architectural element is composed of multiple segments that create an apparent curvature. In most of these cases, it's not necessary to dimension the individual piece (see image), but the entire "apparent arch" with a curved dimension. Therefore, it would be useful to have a curved dimension that can be passed through three points.
