Custom profile definition with Morph tool edge/line statuses

[Ville]

Hello!

Profiles need a feature upgrade to support level of detail and visibility of their nodes and edges like the objects/morphs have. At the moment GDL can't define profile attribute either.

What we need is:

-Settings in profile manager to set visibility of line/edge generated by each profile node

-Setting resolution levels/steps for curved elements, in profile UI. Steps meaning predefined alternative presentation accuracies.

-Support for controlling detail level (accuracy) of components using profile-attributes in Display options

-Ability for GDL-object to create and merge smart profile definitions to projects

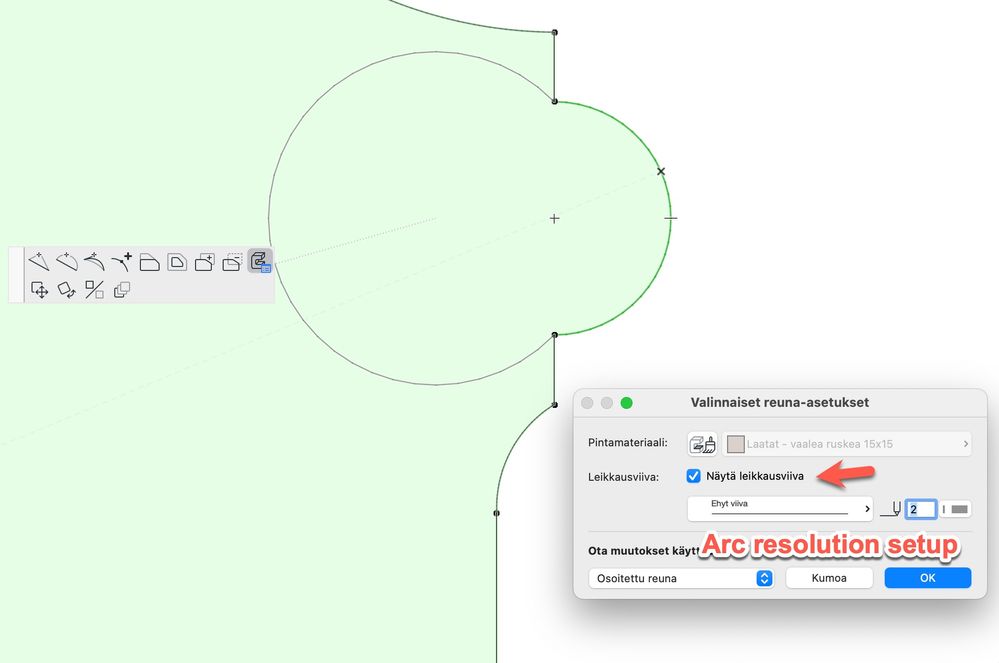

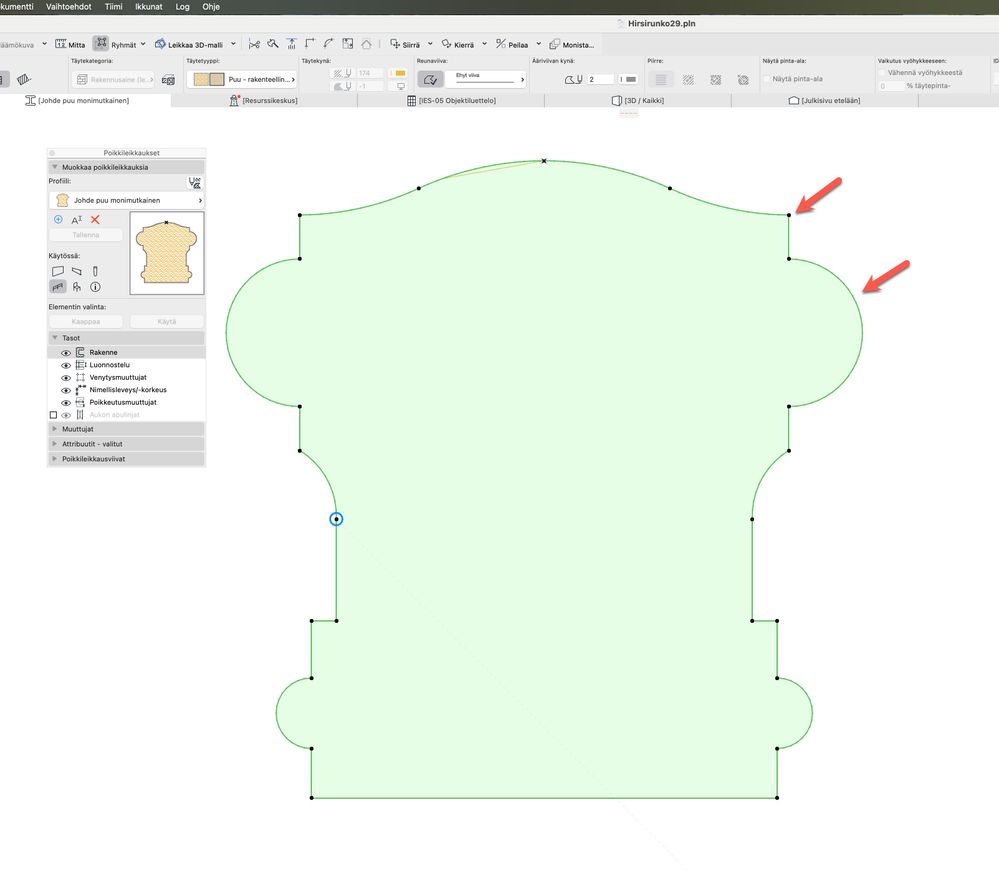

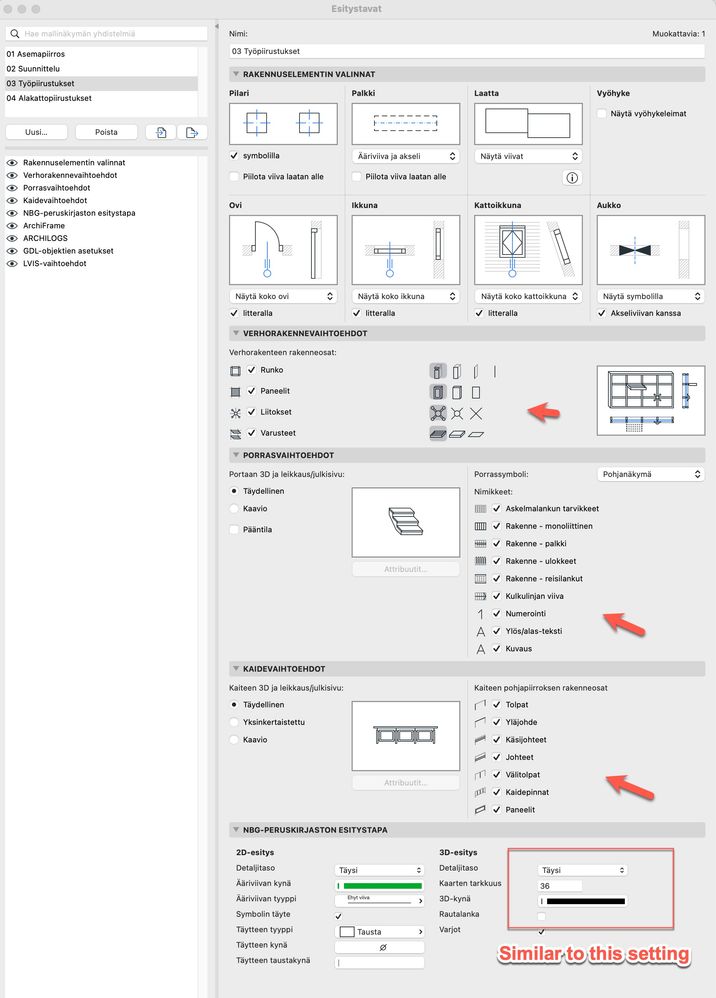

The attached screenshots of existing UI show where to place these settings.

Hope You like this idea!

Cheers,

Ville

[NBGheikki]

The end result could be something like this. Below is what a complex handrail looks like out of the box – it's very dense and will not look very nice in a section or facade. Above is what it could look like if we could adjust how each vertex of the profile acts. (I made these adjustments by turning the handrail into a morph.)
