DWG export - Wall Finishes Splitting Perpendicular Lines

DavidJR
Participant

Hello!



I am having issues with lines in a DWG export, I have played around with numerous translation settings but can't find a fix.

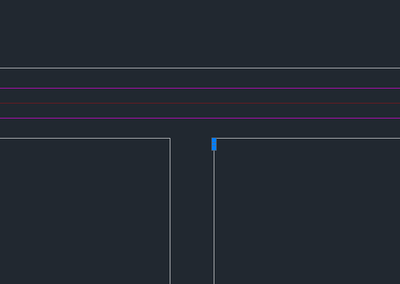

In the exported DWG, walls that abut each other have lines split up at the finishes intersection points (even though the model is showing 'core only') (highlighted in the image below). Not only have the lines split but the lines are on the external wall layer rather than the internal wall. Which makes me think it could be end line of the finishes showing instead.



Any suggestions are much appreciated.



Thanks,






Operating system used: Windows
