RFA objects importing upside down into Archicad

onestoreyllc
Booster

Has anyone else had the problem when importing RFA into GDB files into Archicad they show import upside down?  How do I fix this?

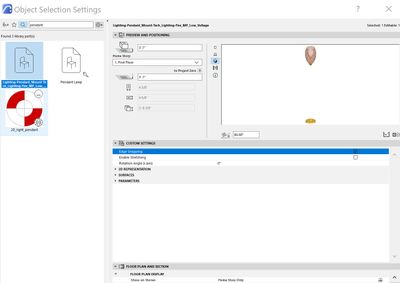

Screenshot 2022-04-15 122955.jpg

Screenshot 2022-04-15 122914.jpg

Meredith
AC26 USA - Lenovo P17 - Intel(R) Core(TM) i9-10885H CPU @ 2.4GHz - 32.0GB - Windows 11 Pro
1 ACCEPTED SOLUTION
3 REPLIES 3
Solution
Barry Kelly
Moderator

When you import, is there an option to adjust the z-axis.

Give it a negative value?

I think that might be 3DS import.



Otherwise use the 'Rotation angle (x axis) parameter and set that to 180°.



Barry.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

I have experienced this. I just rotated about the Z axis to flip it the right way up and then saved as a Favourite. One thing I have experienced issues with is when a Revit object has variations which can obviously be selected within Revit but Archicad translates them all in to one fixed object so you end up with all the variations. It would be great if the add-on were updated to allow which option is required to be chosen.

Lee Hankins
ArchiCAD 4.5 - Archicad 27UKI Apple Silicon 27.1.1
macOS Sonoma (14.2)

Setting the X axis to 180 worked, thank you!

Meredith
AC26 USA - Lenovo P17 - Intel(R) Core(TM) i9-10885H CPU @ 2.4GHz - 32.0GB - Windows 11 Pro
