Intersected edges hidden problem

riyadist
Booster

Hi,

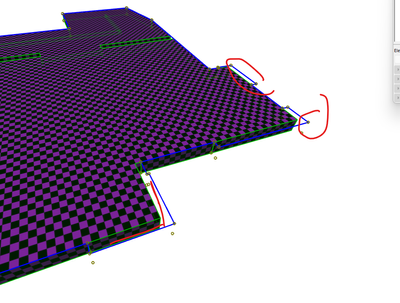

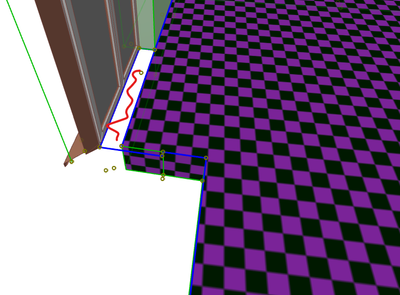

There is a wall and window on the this slab but intersected edges behave like substracted. In order to show the edge properly I hided the wall.



Do you know how could l make it visible?









1 REPLY 1
David Maudlin
Virtuoso

riyadist:



This could be due to the Wall's Building Material having a greater Intersection Priority than the Slab's Building Material. One option is to changing the Intersection Priority so the Slab cuts the Wall, rather than the reverse as is it now.



You should add a Signature to your Profile (click the Profile button near the top of this page) with your Archicad version and operating system (see mine for an example) for more accurate help in this forum.



David

David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
