Hi Everyone,



Our Product Managers are looking into possible improvements regarding Graphic Overrides. To help them here are a few questions. Any valuable insight is greatly appreciated.



  • What is one thing that you would definitely improve on the way Graphical Overrides currently work?
  • How many Graphic Override rules and combinations do you have in a typical project?
  • If you have many rules and combinations, how do you structure them? For example do you put numbering at the beginning of their names or add rules or combinations as separators?
  • How often do you need to manage rules or combinations? For example is there a BIM Manager who sets them up at the beginning of the project or do you need to edit them constantly?
  • If you need to edit them constantly, what are the typical reasons?



Thank you!

26 REPLIES 26
Mambro
Contributor

Hello everyone,



Thanks Ferenc for your kind request, I think it would be super useful to gather some community feedback about different topics as well! This is my first message in the forum but I’ve always wanted to contribute somehow and this seems to me like the ideal format to begin with.



My apologies for being partially repetitive but I would like to add my insights anyway. Indeed, it’s nice to read so many users writing down something very close to my own personal wishlist! Therefore, starting with the implementations topic, I would first of all organize two different categories for across-tools coherence improvements and completely new features:



Coherence improvements: GO should definitely have the exact same avance features schedules already have since many years.



  • More complex formulas with brackets
  • Access to full expression-based properties, right now more complex and conditional ones are not available, I guess due to performance reasons during live modeling with GO on. Maybe you could just add an optional RUN button for requesting processes on demand
  • Access to inner GDL parameters with the same interface of schedules and IFC property mapping panels (by the way, this feature would be amazing in expression properties as well)
  • Access to full hierarchy components, it would be a huge step for code checking activities to add the chance to validate classes and informations stocked inside railing parts or CW members
  • Access to BMat components in CS and PC both from a graphical and an information POV. That would be crucial for giving a huge boost to the Reno filter with the chance to highlight specific element parts which could have a certain user-made property or the standard existing/new/demolish one (another amazing implementation I would love for components)



New features: the only one completely new function I think could be a real game changer is a toggle visibility button acting both on elements, hosted elements (windows, doors, holes) and of course hierarchy and BMats components as well. This simple feature, together with the former one, should definitely solve the long time requested phasing tool which would simply become an advanced GO-based alternative to the Reno filter itself with the chance to create as many phases as the user want with a simple group option property activated through a purely GO filter.



Coming to the other statistic questions: I normally have a dozen of GO combinations in my template with more or less 50 rules which I always decline in different projects based on specific needs. Personally I don’t particularly like the numbering way of organizing tools nor separators (I usually delete them when present) since it’s quite complex to manage while the project evolve in time. At the moment I use a two digits prefix code for separating combinations by activities (eg CC for code checking, DC for dimension checking, AF for analysis functions, RF for Reno filter pairing, GR for graphical representation and so on). Maybe I could suggest again to use an already existing structure for internal coherence, I personally like the property manager organization with user created groups and movable order. As a BIM Manager I usually set GO myself in my template as well as in the one of architectural and engineering firms I work with, but, as I wrote before, I think GO should be necessarily modified in every project due to specific needs which cannot be fully predetermined. It is true though, that a standard common base should be set in every template for making easier and quicker to decline rules and combinations.



Thanks for requesting that. It’s nice to know that you guys are interested in getting feedbacks from the huge community of AC lovers all over the world! I look forward to the see your amazing next update.



Cheers

abdelaziz
Expert

Hello guys
it would be nice to have an option in the GO that would allow to modify the display order (1 to 14) of the elements by rule
😉

AMD Ryzen 5950x
AMD RX 6750xt
AC27
abdelaziz
Expert


Hi

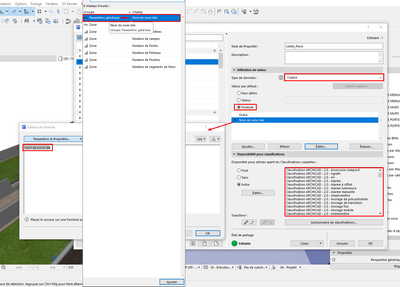

I tried to use this formula in a property for the elements which allows me to see which zone the element belongs to but I can't use the GO with this property, it would be possible to have a workaround to display the elements that are not assigned to the zone?

thanks

AMD Ryzen 5950x
AMD RX 6750xt
AC27

I agree with almost all of the above but want to add one thing...



We need to be able to have GO list ALL properties.

For example - the Property for [Glazing area / Floor area = TRUE/FALSE]



We need for GO to be able to access these and use them for auditing in projects.



No, I still don't accept the argument that it slows down users computers - that means the user needs a new computer or alternatively not use that particular GO (if it had worked). Don't limit our options based on what hardware you think we have or how you think we use the program/function - we want to find new and different/better ways of working and this means we need freedom to do so within the program.

Erik Bjornhage : SwedishChef, ETTELVA Arkitekter, Gothenburg, Sweden
Architect : Digital Development : Graphisoft Cert. BIM-Manager
ETTELVA Arkitekter : Eriks LinkedIn
DELL Precision 5570; i7-12700H; 64 GB; RTX A2000 [8GB] : AC12 - future

They could always mitigate the implied overhead by applying a switch to turn off all the SAM processing that I assume most of us never need to access. Also bear in mind all the settings missing from the GO's are available in the Schedules, so there isn't much defence for their omission.

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
snow
Virtuoso

1) What is one thing that you would definitely improve on the way Graphical Overrides currently work?

Distinction between cut and uncut lines.

GO for renovation-display is in the most cases useless because this distinction is not possible.



2) How many Graphic Override rules and combinations do you have in a typical project?

10-20



3) If you have many rules and combinations, how do you structure them? For example, do you put numbering at the beginning of their names or add rules or combinations as separators?

For rules, I try to sort them according to what they do or for what I use them... so I name it beginning with the same expression, sometimes like 'renovation', fills', 'working model' and so on...

For combinations, I've a numbering system, according to the project phases.



4) How often do you need to manage rules or combinations? For example, is there a BIM Manager who sets them up at the beginning of the project, or do you need to edit them constantly?

From 5 up to 50 times... depending on the complexity of the planing task.



5) If you need to edit them constantly, what are the typical reasons?

I do it when I realize the rules or combination doesn't do what I need, or I've changed pens, material, layers etc.

Archicad For Future
______________________________________

archicad versions 8-27 | mac os 13 | win 10

Given this feedback request shouldn't we expect a more substantial item regarding graphical overrides on the roadmap? It sure would be disappointing if all that came out of this was an enhancement to organise in groups - especially if it as flawed as it is for attributes.



So I'm bumping this as a reminder of the unrealised potential of GOs and what kind of development actually needs to be done rather than superficial quick fixes branded as new features.
