Hi there!.
i am seriously disturbed that i have to use the same section/Elevation markers on each project.
What disturbs me the most is the tendency or should i call it "the standards" here in my country... That the most understood elevation marker is not (M1), but rather (M2)...
Anyone who can help On How I can Design my own Markers?, Or any link that i can get new markers?

Help is appreciated...

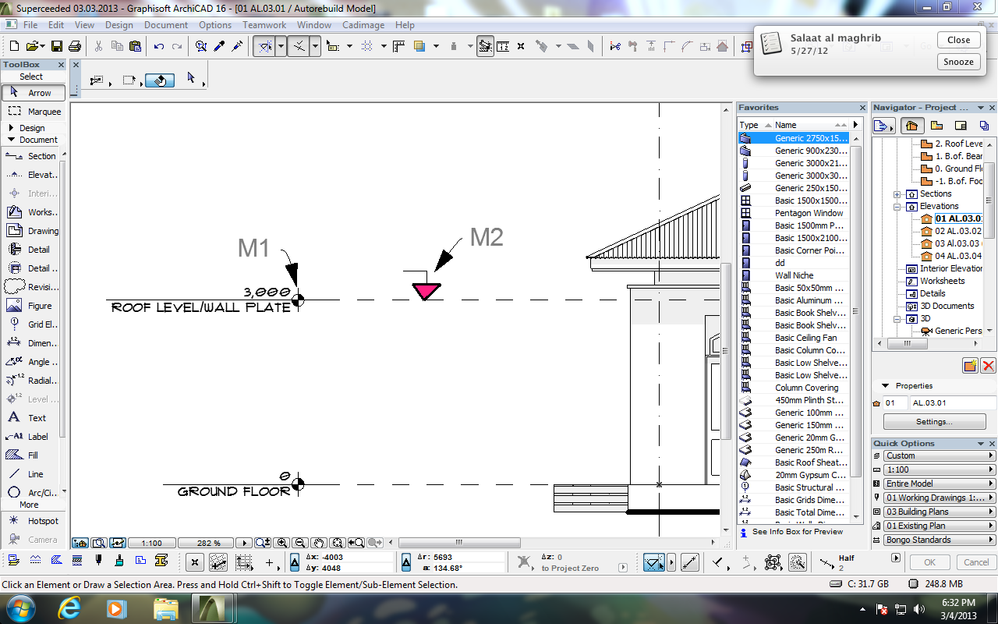

Screen Shot 2013-03-04 at 6.32.27 PM.png
4 REPLIES 4
Laszlo Nagy
Community Admin
Community Admin
These are called Story Marker as they show the Story Level Lines.
You would have to do GDL Scripting in order to create your own Story Marker.
Your best bet would be to create a copy of the "Built-in Story Marker" and script additional Marker Shapes for it.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
David Maudlin
Rockstar
Salum Al Riyamy:

One option is to use the Dimension Tool in Elevation, set to Elevation Dimension Type, there are 8 options for the marker symbol, some are close to your example. To use the Dimension Tool in elevation, you will dimension to the model (the dimensions do not appear automatically as with the Story Levels).

You should add a Signature to your Profile (click the Profile button near the top of this page) with your ArchiCAD version and operating system (see mine for an example) for more accurate help in this forum.

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
Anonymous
Not applicable
laszlonagy wrote:
These are called Story Marker as they show the Story Level Lines.
You would have to do GDL Scripting in order to create your own Story Marker.
Your best bet would be to create a copy of the "Built-in Story Marker" and script additional Marker Shapes for it.
Laszlo,

I am not familiar with the Story Markers, but I find it is generally best to script custom markers from scratch. This applies to new users and old hands alike. The standard parts are generally quite complex (to accommodate all the variations) and most user's needs are very specific. Many custom symbols can be accomplished with just a few lines of code in less time than it takes to figure out the code in the standard parts.
Laszlo Nagy
Community Admin
Community Admin
My view is that one needs to look at the actual GDL and see how complicated it is, how it fits his purposes and which is easier and faster to do: modify it or do it from Scratch.
Generally I agree that many GS GDL objects are quite complicated, Doors/Window being to most complicated ones.

I checked the scripts of the Built-in Story Marker and it is not that complicated (For whom, of course, for many it already is). It does not call any macros. However, it has some parts that are written to provide the correct functionality.

The Marker Head portion is about 20% of its 2D Script and is not very complex, if one knows some GDL of course. So in this specific instance I would probably try to modify a copy of this deafult GDL object.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
