Pitched roof with different eaves heights

Anonymous
Not applicable

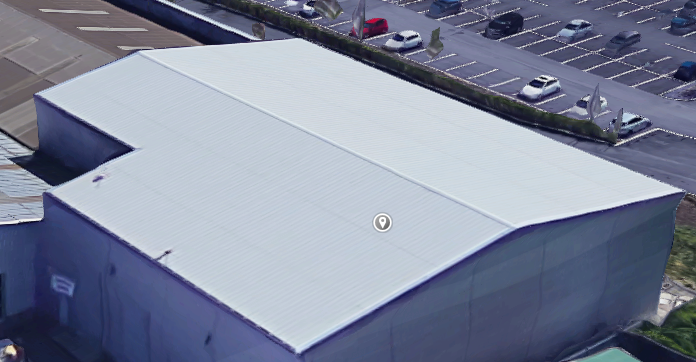

Could someone advise me how to create a roof that has two different eaves heights along the same pitch please (see image). I'm working in Archicad 20

6 REPLIES 6
David Maudlin
Rockstar
thompsonmp:

Create either a Single-plane or Multi-plane rectangular Roof, then edit the perimeter as shown in your image. Each slope will be maintained, the eaves along that side will vary in height.

You should add a Signature to your Profile (click the Profile button near the top of this page) with your ArchiCAD version and operating system (see mine for an example) for more accurate help in this forum.

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
Anonymous
Not applicable
Thanks David.

Is there an option for stopping a roof from being hipped automatically?

Appreciate the tip re signature too, very new to archicad, architalk and Mac!
Barry Kelly
Moderator
thompsonmp wrote:
Is there an option for stopping a roof from being hipped automatically?
Yes.
For the multiplane roof you can choose the construction method you want (see image).

You can also do the roof you want with the multi-plane roof as well (if you have an eave overhang).
You just need to edit the polygon shape for the roof like you would any other polygon (adding nodes and moving edges or cutting holes).

Be sure to edit the roof edge (eave) and not the pivot line as that will change the geometry of your roof.

If you have no eave overhang it can be hard (impossible) to choose between the two, so set an overhang and edit the eave.
This will set your roof to a 'Manual' eave so you will have to adjust all the other overhang edges manually back to zero if that is what you want.
You can't just set the eave back to zero as that will undo your edit.

Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Barry Kelly
Moderator
To edit a multi-plane roof...

Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
David Maudlin
Rockstar
thompsonmp wrote:
Appreciate the tip re signature too, very new to archicad, architalk and Mac!
Welcome, thanks for adding the signature.

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
Anonymous
Not applicable
Thanks for the advice Barry and the markups, very helpful
