ROOf Draw

farzadmit · 2 weeks ago

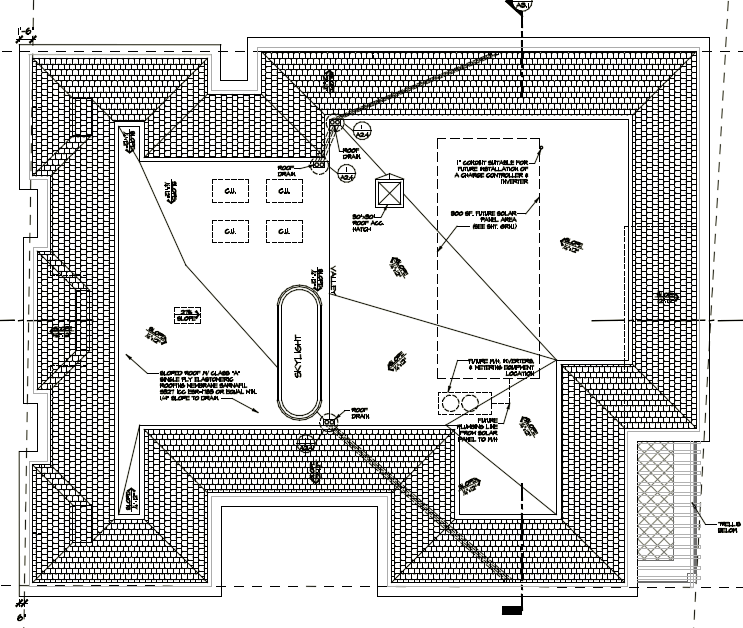

Hi friends, how can I draw this pitched roof in Archicad?

Operating system used: Windows 12

runxel · 2 weeks ago

The easiest way is most probably to use the "Mesh-to-Roof" Goodie add-on.

Draw the roof structure with a mesh, then use the add-on, done. (Mostly. You might want to check vertical alignment... roofs sadly are always tied to the inner surface.)

Lucas Becker | AC 27 on Mac | Graphisoft Insider Panelist | Akroter.io – high-end GDL objects | Author of Runxel's Archicad Wiki | Editor at SelfGDL | Developer of the GDL plugin for Sublime Text

My List of AC shortcomings & bugs | I Will Piledrive You If You Mention AI Again |

POSIWID – The Purpose Of a System Is What It Does /// «Furthermore, I consider that Carth... yearly releases must be destroyed»

mthd · a week ago

Another method is to cut a hole in the roof after you have created it. I would attempt to magic wand the roof base polygon with roof tool active after setting the parameters then cut a hole in it.

Here is an official video on how to cut a hole in a roof from a while back now.

https://www.youtube.com/watch?v=XTY-zJuEtH0

Find the playlist for Complex Roofs in Archicad for a refresher.

I hope you also have the 2D elevations to refer to as well when editing the roof to the correct geometry ?
