Recessed External floor uplighter

jbeckford
Participant

I would like to create a floor recessed external uplighter that will illuminate a granite wall. What would be the best way to achieve this?  Help is appreciated.  Thank you J

Archicad 25 (6005) | Mac OS 12.6 Monterey | iMac (Retina 5K, 27-inch 2019) 3.7 GHz 6-core Intel i5 | 40GB 2667 MHz DDR4 | Radeon Pro 580X 8GB
5 REPLIES 5
Barry Kelly
Moderator

If you don't have a light (lamp) object that will do this, you can place a Spot Light form your General Light Source folder and by dragging the target position, you can rotate it in 3D so it points up.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thank you Barry

Archicad 25 (6005) | Mac OS 12.6 Monterey | iMac (Retina 5K, 27-inch 2019) 3.7 GHz 6-core Intel i5 | 40GB 2667 MHz DDR4 | Radeon Pro 580X 8GB

Hi Barry,

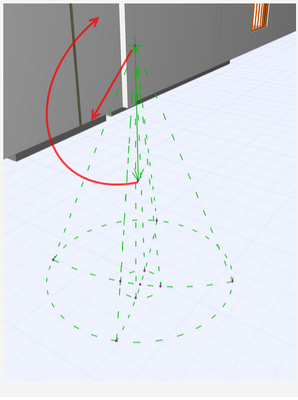

I have the spotlight light source (see screenshot attached) and I can see that the arrow indicating the direction. I am unclear how I alter the target position and I only seem to be able to rotate the light source in one axis. Help appreciated. Thank you



Jamie


Screenshot 2023-02-27 at 11.49.24.png
Archicad 25 (6005) | Mac OS 12.6 Monterey | iMac (Retina 5K, 27-inch 2019) 3.7 GHz 6-core Intel i5 | 40GB 2667 MHz DDR4 | Radeon Pro 580X 8GB

It is a bit tricky to manipulate.

I found it easiest to place the origin of the spot at the bottom of a wall and then rotate the target node to the top of the wall.

Then you can move it to where ever you want and adjust the spot length and diameters.



It seems a little odd, but I didn't see any settings for the target co-ordinates or a rotation angle, but I didn't have a really good look.








Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
jbeckford
Participant

ah that great Barry!  That works a treat.  Thanks again for your help
