Slab lines in elevation

Anonymous
Not applicable

‎2008-01-14 12:55 PM - last edited on ‎2023-05-25 05:54 PM by Graphisoft

‎2008-01-14 12:55 PM

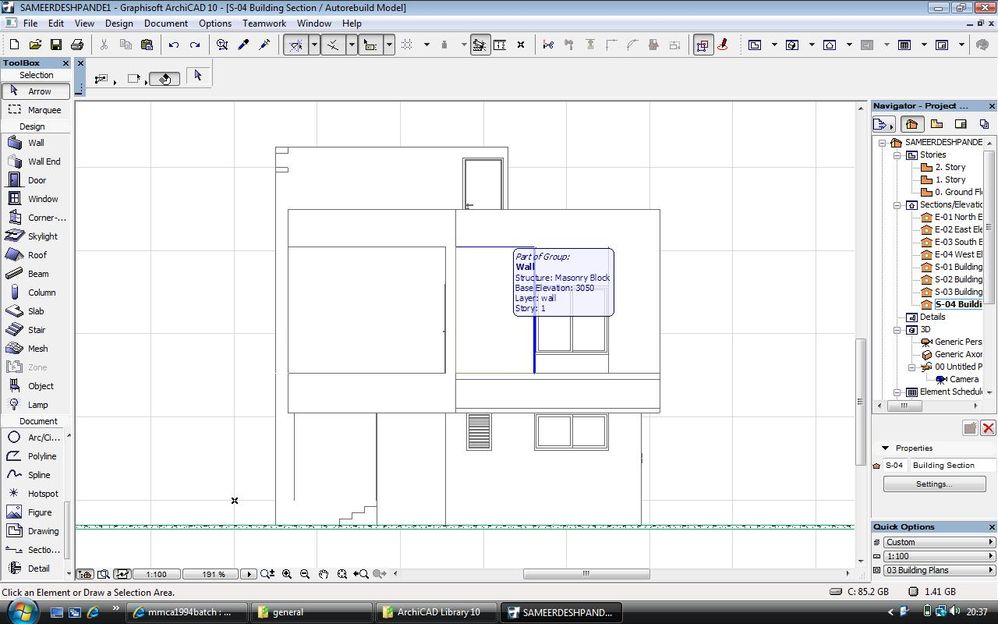

Please refer to the image below! Why I am seeing slab lines in elevation. How can I hide them?

Labels:
0 Likes
1 REPLY 1
Laura Yanoviak
Advisor

‎2008-01-14 04:57 PM

‎2008-01-14 04:57 PM
You slab edge material is different from your wall material, so they do not "mend". You either need to:

1) change your slab edge material to match your wall material (quick and dirty option), or

2) model the building as it will be built (rarely to slabs extend to the face of the wall).
MacBook Pro Apple M2 Max, 96 GB of RAM
AC27 US (5003) on Mac OS Ventura 13.6.2
Started on AC4.0 in 91/92/93; full-time user since AC8.1 in 2004
