complex profile - 2d appearance bug (?)

Anonymous
Not applicable
I've had similar problem previously http://archicad-talk.graphisoft.com/viewtopic.php?p=133250#133250 that didn't get resolved.

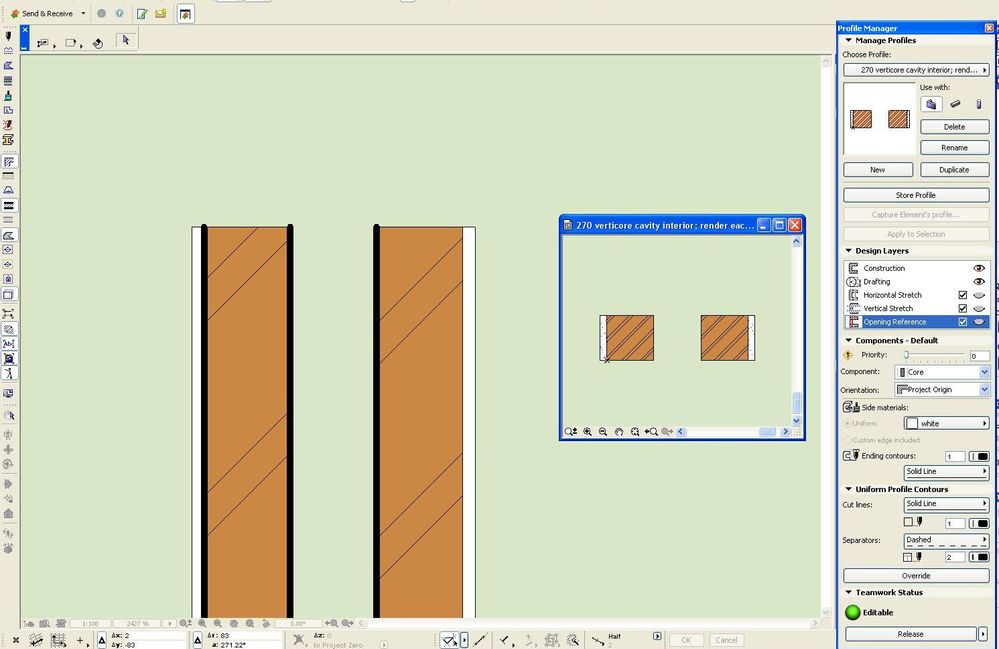

Attached is image of plan view of complex profile wall. The sections on either side of the cavity are identical (one is a mirror copy of the other).

Notice the difference? my preference would be the outcome on the left with the core edge lines thicker but at this stage, i would settle for consistency. I have tied adjusting the display order but it doesn't seem to make any difference.

The only way i can get them to be consistent is to change the edge lines of all the elements in the complex profile to the same pen, which kind of defeats the purpose of using line thickness to communicate heirarchies of information.

has anyone else noticed this? surely a bug? or am i missing the point of this 'feature'?
