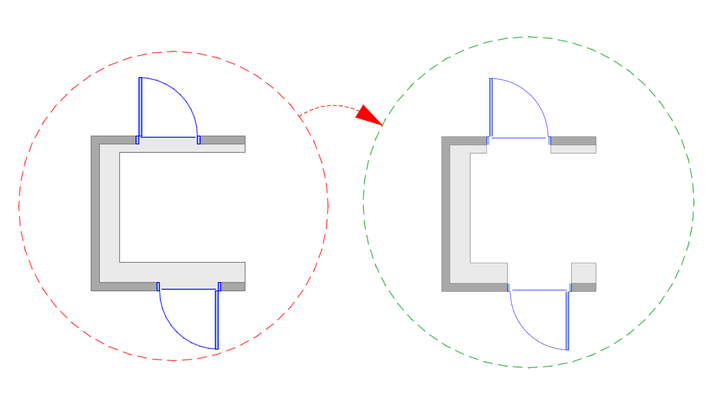

The symbolic at floor plan view with the door shows wrongly on the profiled wall. It is a limitation of the profiled wall. The problem appears with an object (window or door) shown as a symbolic on the profiled wall. When the thickness is different, some parts are slimmer than others. If the FPCP is put in the slimmer part, the problem appears.
The wish is, It would be good to fix this.
If the FPCP can be placed at the thickest point of the profile, the door symbolic view is shown fine.
The workaround is to use Floor Plan Display "Projected" or "Projected with Overhead". But unfortunately on drawings dokumentation doors and windows needs to shown as a "Symbolic" way.
Open
