After Graphical Override, why is a number appended to the name of the exported DWG blocks?

Eric Xue
Contributor

When Graphical Override is used on multiple objects with the same name in Archicad, the exported DWG blocks will be renamed (different numbers will be added after the original names), and there will be many blocks with different names, It is very inconvenient to edit again in DWG is there a way to solve it? thank you

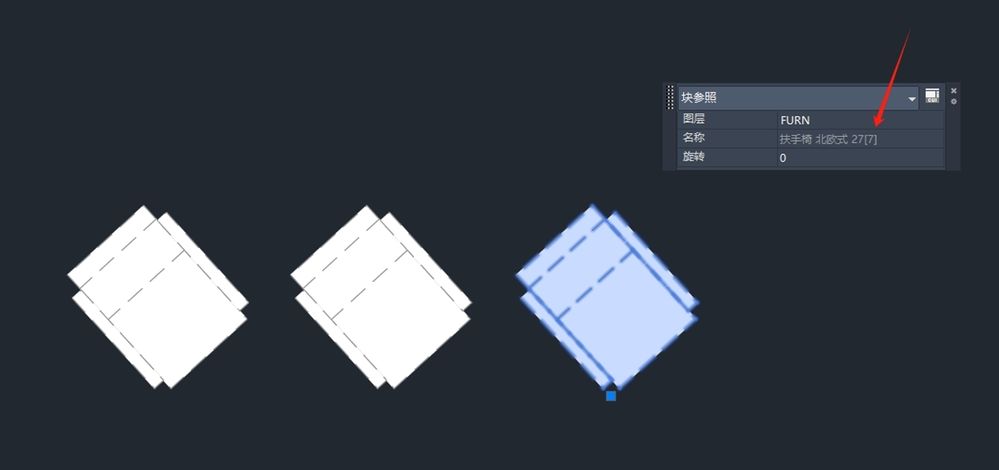

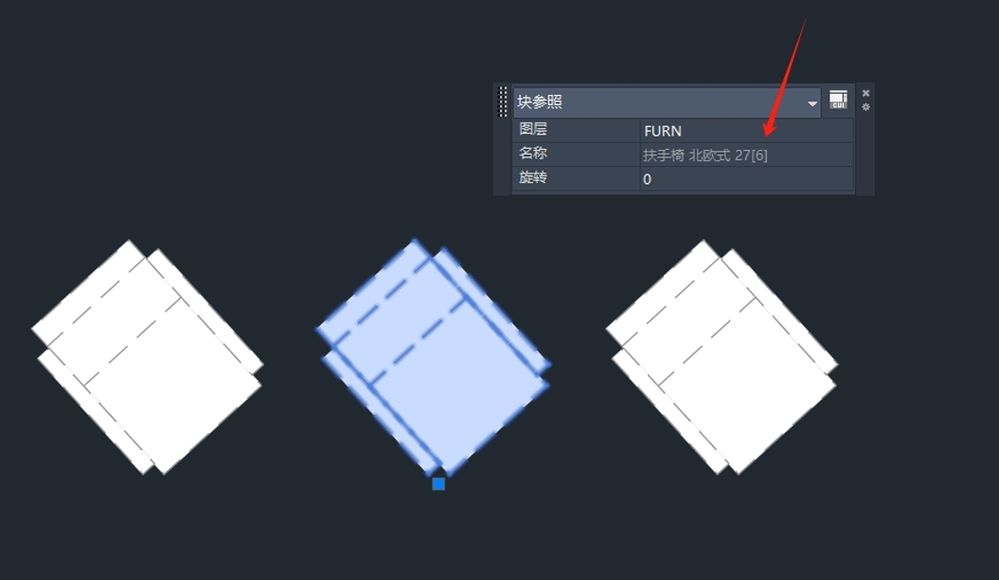

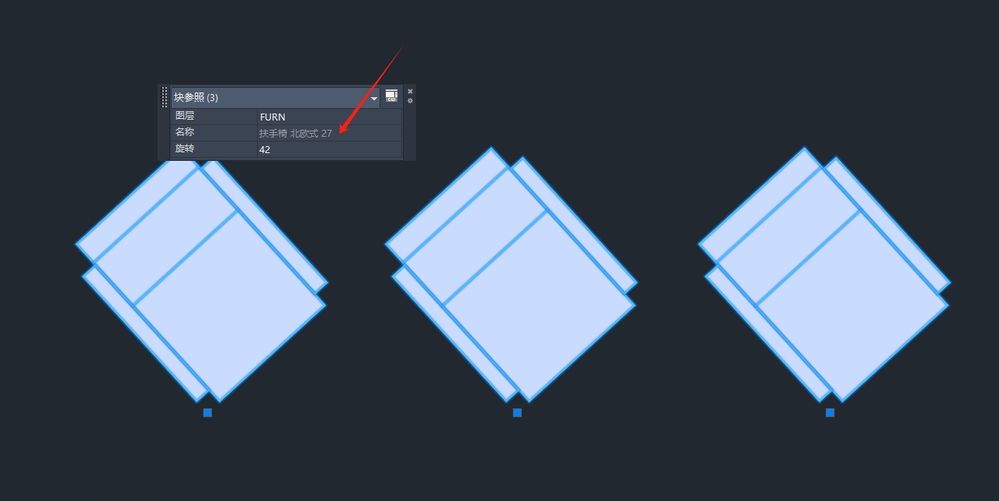

The following picture shows the difference in exporting DWG block names after applying dash line Graphical Override and without applying dash line Graphical Override.
