Zone Schedules - 2 Story Zones

Anonymous
Not applicable
Greetings,

We are working with the automated schedules in AC17 to produce a zone schedule. We have a series of Mew style town homes which have 3 levels to them. We are trying to show total unit count and total unit square footage in our reporting. However, the zone stamp is only tracking the square footage of the main level of the mew units. The other areas of the two floors are not being represented.

Any tricks or ideas of how to do this?

(URGENT!!!!! We need help AS SOON AS POSSIBLE!!!!!

Thanks in advance!
8 REPLIES 8
Barry Kelly
Moderator
Has you schedule criteria been set to find only zones in a particular storey?
Maybe showing a screen shot of your criteria will help so we know what you are scheduling.
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Anonymous
Not applicable
Barry,

Thanks for the quick response. I've attached 3 screen shots: 1-our schedule criteria, 2-the zones in plan view, 3-the zones in 3D view. As of right now, we have modeled the zones individually for each story to calculate the accurate square footage, but we don't want these zones to be included in the quantity count within the schedule.

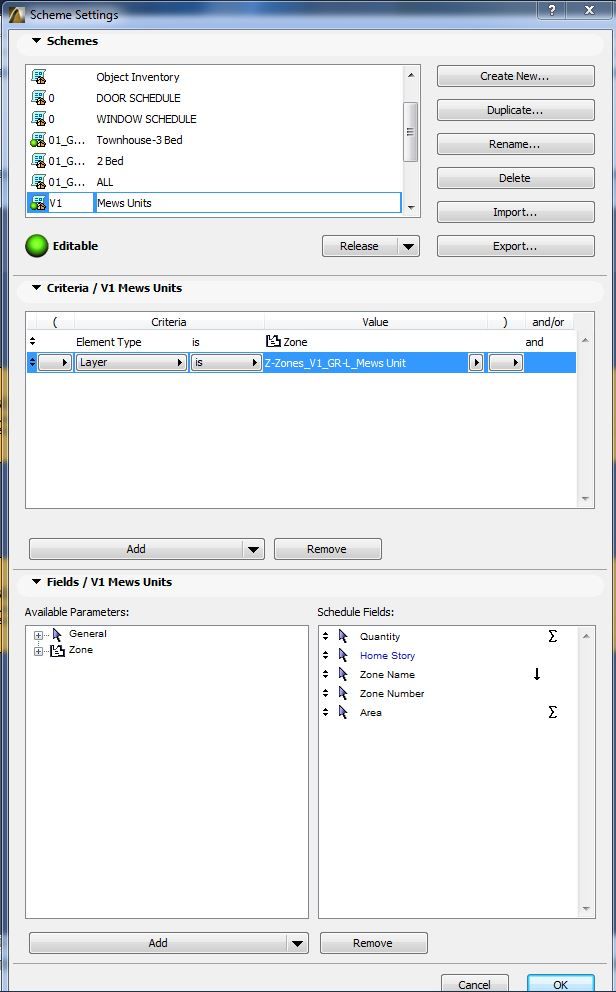

Mews Unit_Schedule Criteria_2014-04-30.JPG
Anonymous
Not applicable
Here are the zones in plan view on the 3rd story.
Anonymous
Not applicable

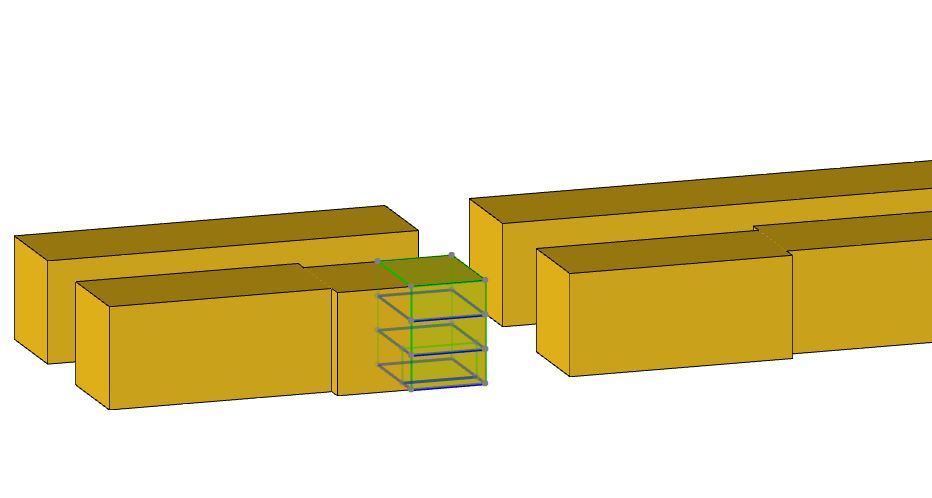

And here are the zones in the 3D window (all stories).
