font conversion when publishing from Plotmaker to DWG
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-15 11:03 PM
I did read the forum thread started last year by afpina and Rick Tompson regarding font conversion for DWGs. I didn't understand most of it.
I'd like to know if I can publish a DWG from Plotmaker that shows the ArchiTEXT Western font (or a similar drafting font) as it shows up in Plotmaker? If it is possible, how can I do it?
Thank you,
John
- Labels:
-
Data Exchange

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 06:15 AM
As with all custom TTF (true-type fonts) the person on the receiving end of the converted file needs to have the font installed on their machine. You will need to verify that your license for the font (if any) allows you to share it on multiple machines. You also need to make sure that your Translator file gets the custom font(s) translated correctly when creating the DWG file.
Architectural Technology Specialist
a r c h i S O L U T I O N S
WIN7-10/ OSX 10.15.7
AC 5.1-25 USA
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 07:27 AM
Good point about the licencing. I guess that DWG falls short of PDF in terms of being universally readable and printable.
My problem is right here on my own machine. When I open the DWG that I created using Plotmaker the fonts are not showing in the DWG as they were in Plotmaker. This is all taking place on one computer. I figure that I need to getting it working here before I can send it to anyone else.
Next, I can work on translating the fonts into a public domain font or a font owned by the person that I'm send the DWG to.
Thanks,
John

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 09:00 AM
johncassel wrote:Quite short; PDF is IMHO the only format where you can be certain that what you send is what is going to be printed; the only care has to be taken about scaling.
Good point about the licencing. I guess that DWG falls short of PDF in terms of being universally readable and printable.
johncassel wrote:Which fonts are you using? They should be True Type fonts, for AutoCADs 14 and newer. You should make sure the person on the other end has the same fonts. And, you should set the font conversion table. If you have AutoCAD, there are True Type fonts matching the SHX fonts provided by Autodesk on your machine.
My problem is right here on my own machine. When I open the DWG that I created using Plotmaker the fonts are not showing in the DWG as they were in Plotmaker. This is all taking place on one computer. I figure that I need to getting it working here before I can send it to anyone else.
Next, I can work on translating the fonts into a public domain font or a font owned by the person that I'm send the DWG to.
Please specify which fonts and post a screenshot if possible?
ArchiCAD since 4.55 ... 1995
HP Omen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 10:17 AM
I am using ArchiText Western in ArchiCAD. I have AutoCAD on my computer but have no idea how to use it.

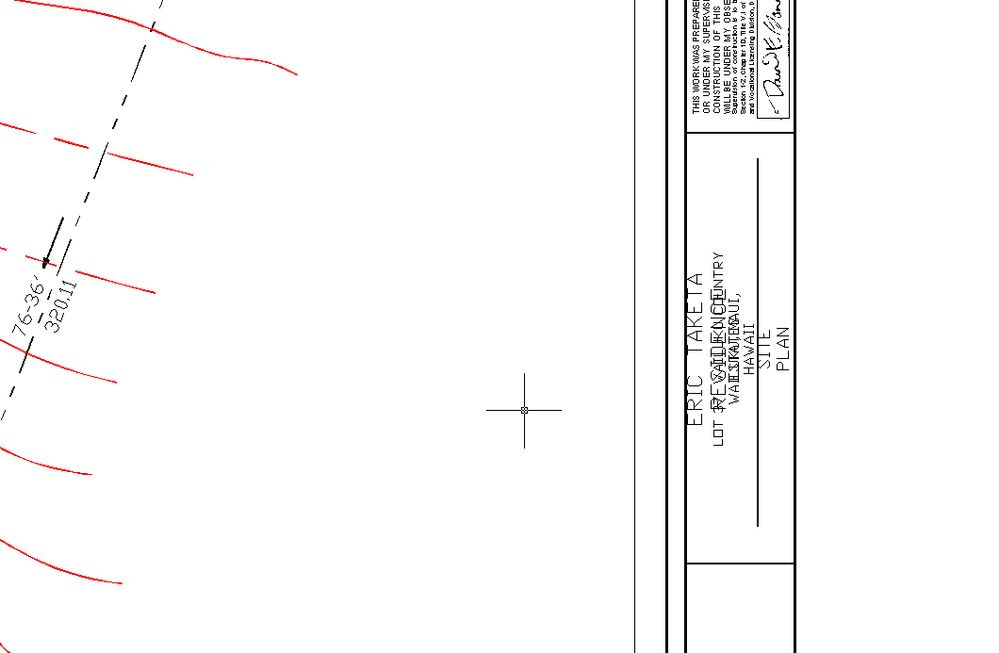

I am attaching screen shots of the layout in Plotmaker and the DWG opened in AutoCAD.
I'm thinking that this is probably too easy a question. The export from ArchiCAD to DWG must be happening thousands of time every day. How can I get the font in the DWG to look like the font in ArchiCAD (all on the same computer)?
Thanks,
John
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 10:25 AM
Thanks,
John

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 10:28 AM
johncassel wrote:Don't have to use it; just open the drawing to see what is happening.
I am using ArchiText Western in ArchiCAD. I have AutoCAD on my computer but have no idea how to use it.
johncassel wrote:As your screen shots are not up yet, please also upload a screen shot of your Translator settings.
I am attaching screen shots of the layout in Plotmaker and the DWG opened in AutoCAD.
johncassel wrote:It should work on the same computer, as the same font should be recognized in both applications. That is, unless your Translator says differently.
How can I get the font in the DWG to look like the font in ArchiCAD (all on the same computer)?
Boy, Link will need lots of sunscreen!
ArchiCAD since 4.55 ... 1995
HP Omen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 10:32 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 10:59 AM
Translator settings as requested.
Thank you,
John
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2004-04-16 11:02 AM
BTW I did try putting Arial under AutoCAD font and nothing different happened.
