multiple shapes fill subtraction

soldaotop
Booster

Is there any way to subtract at once multiple shapes from an existing fill? It is quite annoying that for each subtracted element i have to go back by clicking at the edge of the fill to be able to subtract it from.


Thanks!

2 ACCEPTED SOLUTIONS

Accepted Solutions
Solution
DGSketcher
Legend

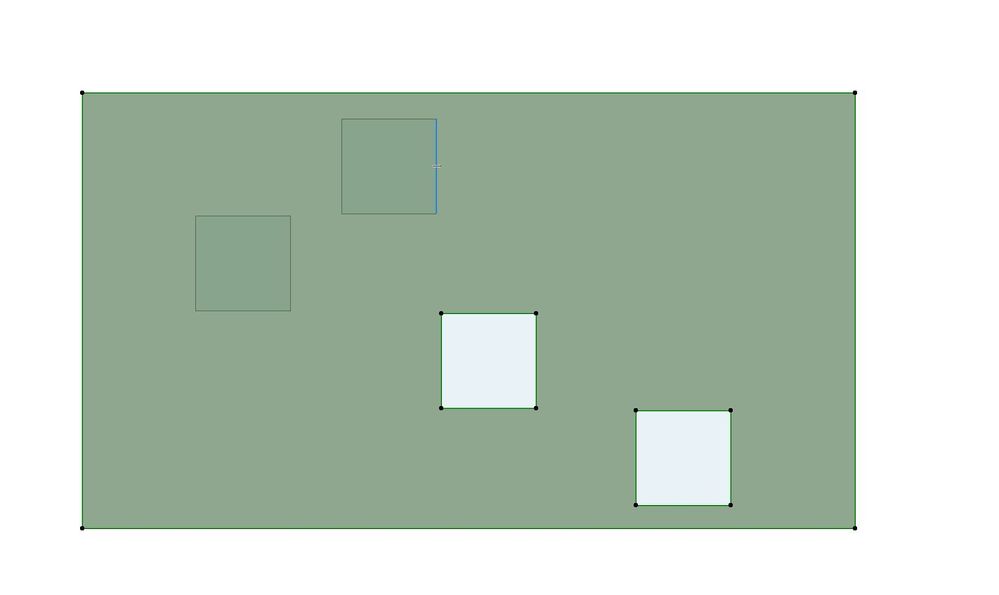

@soldaotop You don't need to use the pet pallet, (hoping this isn't just a Mac thing).

1. Select existing fill

2. Select Fill Tool

3. Either draw new opening shape

   or

   Magic Wand if you have shapes already drawn.

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)

View solution in original post

Solution

Yes, thank you very much, it works perfectly the way you described it!

View solution in original post

6 REPLIES 6
Barry Kelly
Moderator

It should remember the last (subtract) command, so you shouldn't have to click on the main fill edge each time.

Select the main fill, click on the edge and choose the subtract command in the pet palette.

Now just magic wand on each of the shapes you want to cut out.

You have to click each one individually but you don't have to keep choosing the pet palette command (unless you de-select the fill).



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Yes that is exactly the way I have been doing it. But nevertheless, I still have to go back at the edge of the main fill each time in order to be able to subtract a shape from it. Is there any reason for that (maybe some setting that has to be adjusted ?)

Solution
DGSketcher
Legend

@soldaotop You don't need to use the pet pallet, (hoping this isn't just a Mac thing).

1. Select existing fill

2. Select Fill Tool

3. Either draw new opening shape

   or

   Magic Wand if you have shapes already drawn.

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
Solution

Yes, thank you very much, it works perfectly the way you described it!

Ahh, I had the fill tool active which is why it worked for me.

Still learning little things after all these years.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

@ Barry, I love your modesty.
