roof issue

Anonymous
Not applicable
Hello.

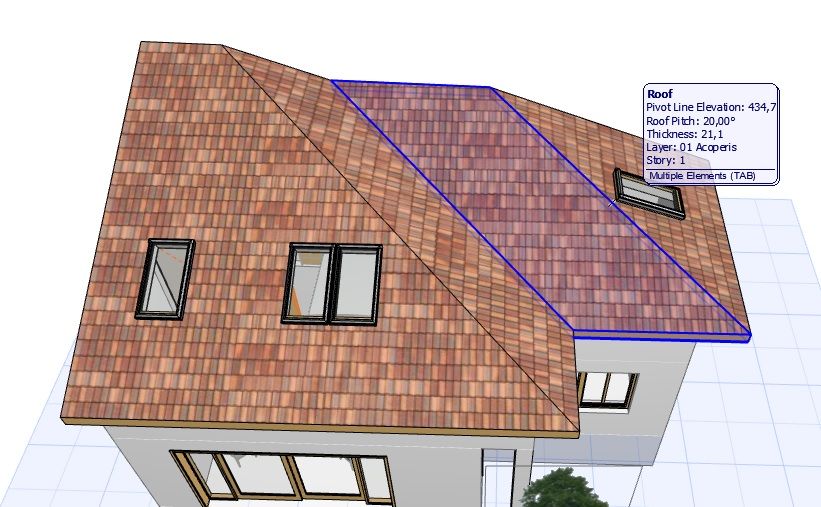

I have an issue with a roof. There are 4 pieces of it, as can be seen in the 3D. The problem is, I can see only 2 of them in plan, but all 4 in the 3D.
How can I fix this?
Thank you.
1 REPLY 1
David Maudlin
Virtuoso
igreere:

Try setting all of them to:
Home Story: Current
Floor Plan and Section > Floor Plan Display > Outlines Only
Otherwise, the Floor Plan Cut Plane may come into play and needs to be adjusted. Also, set the On-Scrren Display Option for Roof Pivot Lines to on, so at least the Pivot Lines show in plan for selecting the roofs.

David
David Maudlin / Architect
www.davidmaudlin.com
