openings on the wall display error

William Yan
Enthusiast

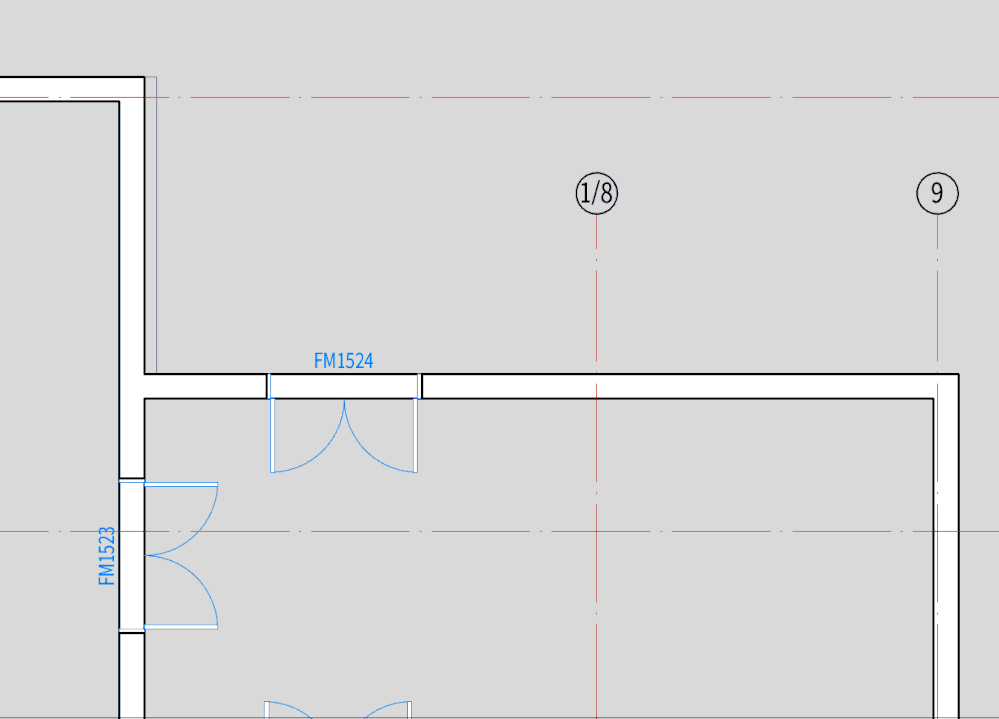

Hey guys, I have a problem. Today I insert a door on the wall , the openning line display is error, the thick line as shown bleow.  I don't know what I've done.

 ①the door was insert yesterday   it is right.   ②I use the same door settings.

Help!

AC 25 3011 CHI    win10

door erro.gif



AC 25 CHI, Windows 10
1 ACCEPTED SOLUTION

Solution

William Yan:



I think this is a small bug in the file. The Wall is set to Existing, the Door is set to  New. When I change the Wall to New, then back to Existing, the Door appears correctly.



The file you posted is AC25, so your signature can use an update.



David

David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6

View solution in original post

12 REPLIES 12

Barry Kelly
Moderator

Any chance that there are actually 2 walls on top of each other where you are placing those doors?



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

William Yan
Enthusiast

I checked it , there are one wall.

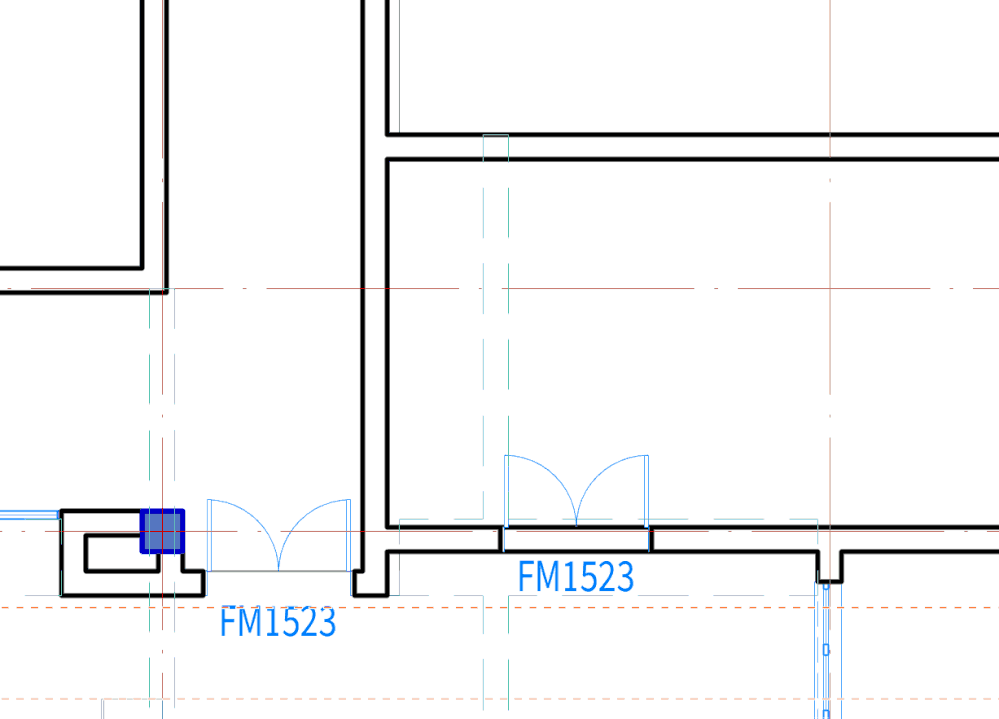

door erro2.gif

AC 25 CHI, Windows 10

OK, so you have copied the wall settings and the door settings and then there is no problem.

There is obviously something still different, I just can't think what it might be.

Not without playing with the actual file.

If you want to send the file in a file share website, please do and post the link.

If you want to keep the file private, then you can message me the link if you want to.



You could also select the wall and door and save selection as a module.

ZIP the module and attach it to this post.

That way we will get just the problem wall which might be enough.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

William Yan
Enthusiast

Thank you Barry.

Here is the mod file with this wall in level 4.

AC 25 CHI, Windows 10

OK, you have me stumped.

I have tried everything I can think of.

Changed every setting in the wall - heights, layer, storey, floor plan display, etc.

Changed the wall.

Change the object.

Checked MVO settings.

Open & repaired the file.

Copied into my own template.



Nothing fixes it.



But if I place a new wall - everything is fine as in your videos.

So all I can suggest is to replace the walls - unless somebody else has a suggestion.



And of course it would be good to send off to your local Archicad support if you can.

Just send them that MOD file.



Barry.




One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Thank you for taking so much time to help me with my problem. I will contact my local support.🤝

AC 25 CHI, Windows 10

Solution

William Yan:



I think this is a small bug in the file. The Wall is set to Existing, the Door is set to  New. When I change the Wall to New, then back to Existing, the Door appears correctly.



The file you posted is AC25, so your signature can use an update.



David

David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6

View solution in original post

That was it.

The one thing I didn't look at as I don't use renovation filters much.

I did try changing the reno filter but that did not change the reno status of anything.



The problem is the door and the wall have different reno status to each other.

Changing them so they match makes them show as you would expect.



Changing the wall to a different reno status (and changing it back) resets the reno status of associated doors so they now match the wall.

I am not sure if that is a bug or if it is intended to do that - as I say I don't use renovation filters all that much.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Thank David ! You saved me! Thanks!

AC 25 CHI, Windows 10

I still have a question. Why some doors can set reno status, some can't?

AC 25 CHI, Windows 10


@William Yan wrote:

I still have a question. Why some doors can set reno status, some can't?


Check the reno status of the elements. An Existing door cannot be placed in a New wall, all the other combinations are possible.



David

David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6

COOL!😃

AC 25 CHI, Windows 10
