Creating a cross window archicad

clauds1223 · Wednesday

Hi there,

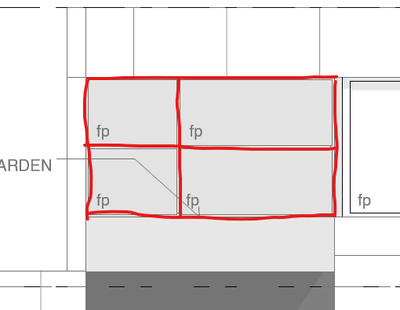

How would I create this window: using the window tool as oppose to the curtain wall tool?

Operating system used: Windows 11

Lingwisyer · Wednesday

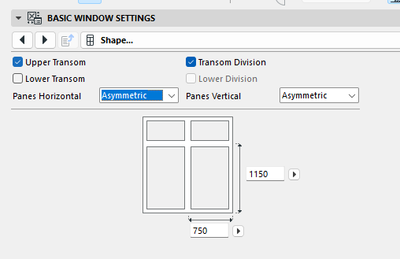

Just turn on a Transom with the Division option enabled on a Double Window.

Again, it feels like you have not even glanced through the settings available...

Ling.

AC22-29 AUS 3200	Help Those Help You - Add a Signature
Self-taught, bend it till it breaks	Creating a Thread
Win11 \| i9 10850K \| 64GB \| RX6600	Win11 \| 7800X3D \| 32GB \| RTX5070TI

Barry Kelly · Wednesday

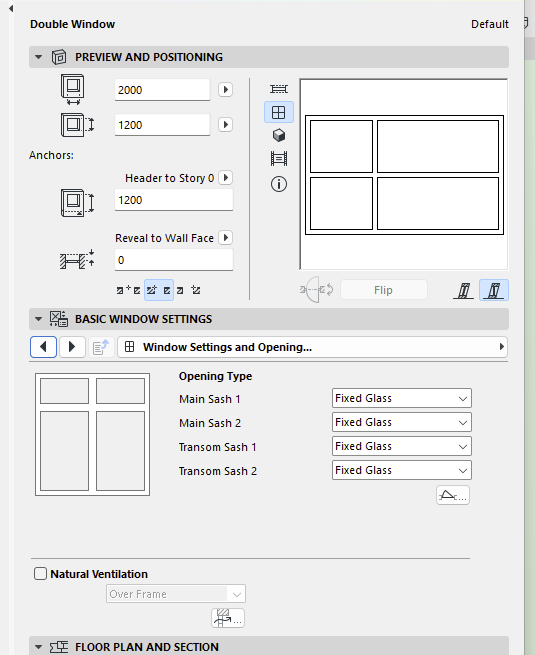

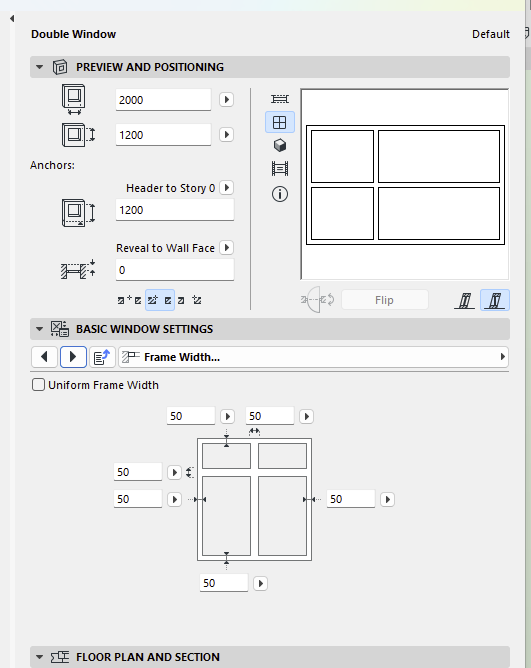

And then go through the next 3 pages setting the frame sizes and sash types.

Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Lingwisyer · Wednesday

Oh yeah, that is something that I should edit in the mapping table... The default 100 is one huge non-structural mullion and transom...
