Dimension line with arrows, but without line

GajaJ · ‎2025-04-10

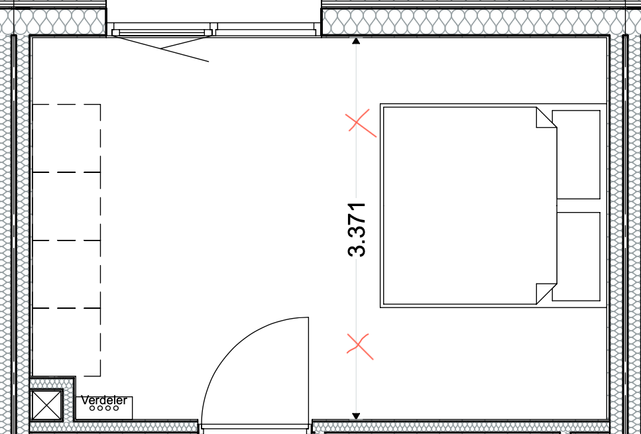

Is there a trick, with dimensions, to keep them as in the screenshot - without the grey line? I know there is a button "show dimension text only, but then arrows disappear as well.

CosminF · ‎2025-04-10

Hi,

You can make the line white? It will not be absent, just invisible on a PDF.

Cosmin Furdui - architect @ Wincon
AC 27, running on Windows 10 Intel(R) Core(TM) i7-9700K CPU64, 3.60GHz, 16GB RAM, Nvidia GeForce GTX1650

Barry Kelly · ‎2025-04-11

And turn off the witness lines so you don't get the white witness line blanking out the edge of your wall.

Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
