Level dimension

Llian
Advocate

‎2011-05-30 06:04 AM - last edited on ‎2023-05-30 03:14 PM by Graphisoft

‎2011-05-30 06:04 AM
What am I missing here ?

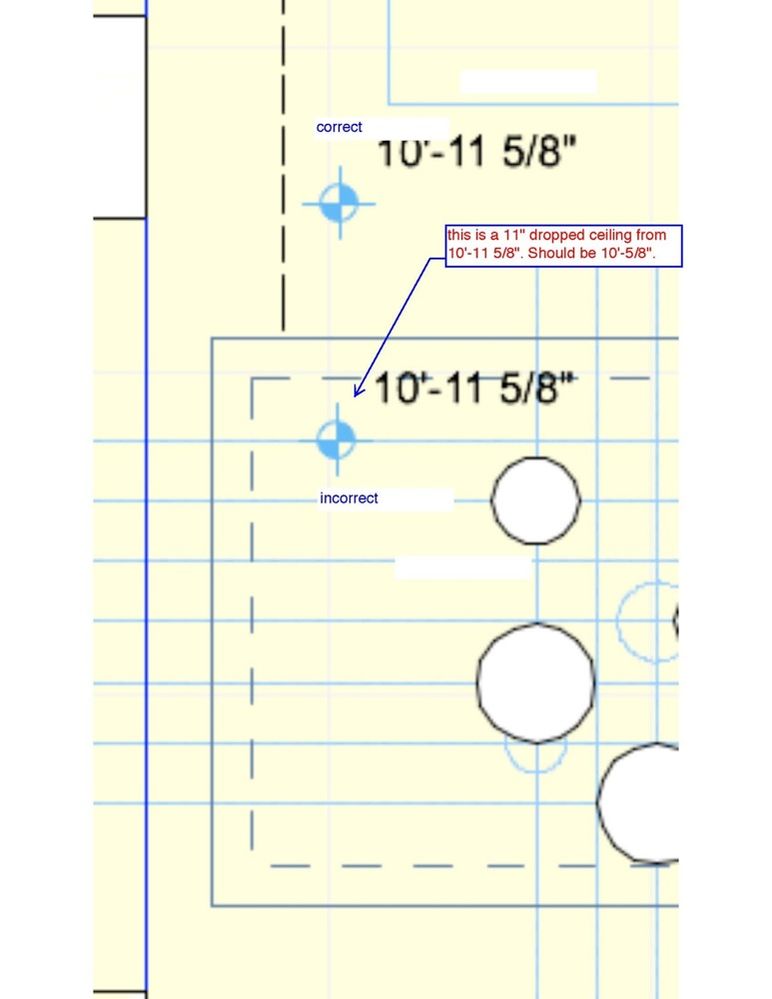

This is a reflected ceiling plan. The dropped ceiling level is incorrect. What do I need to set it right?
Thanks.

Level .jpg
Lilian Seow
LEED AP | cSBA | CAPM | PMP
Interior-Architecture and BIM Management
AC20 USA | 27- macOS 10.14.6| 4 GHz Intel Core i7| 32 GB RAM | Archicad-user since 1994!
Labels:
0 Likes
1 REPLY 1
Srinivas
Booster

‎2011-05-30 07:08 AM

‎2011-05-30 07:08 AM
The Level Dimension will dimension the top of the slab and not its bottom level.

More discussion here
