Showing more levels than stories in elevations?

Anonymous
Not applicable

‎2013-01-06 03:39 PM - last edited on ‎2023-05-23 03:11 AM by Community Manager

‎2013-01-06 03:39 PM
Is there some way I could add more lines with height to an elevation view? Currently I see only story height, but I also need ceiling, floor, window height.

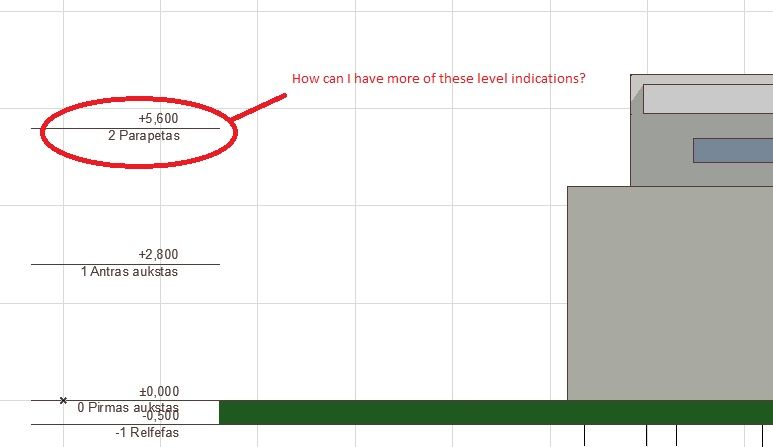

Ideally I would like to know how can I do levels like in this picture, but I don't know how to do it.

Labels:
0 Likes
1 REPLY 1
rocorona
Booster

‎2013-01-06 05:13 PM

‎2013-01-06 05:13 PM
You only need to use the LINEAR DIMENSION Tool, choosing the proper options
