The Column representation on the rooftop is strange.

LeeJaeYoung
Virtuoso

Monday - last edited 4 hours ago by Community Admin

Monday

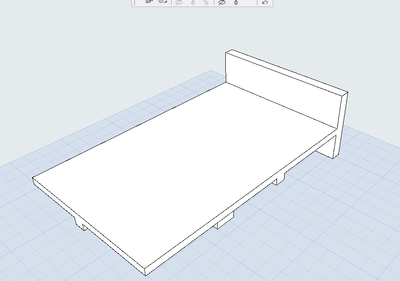

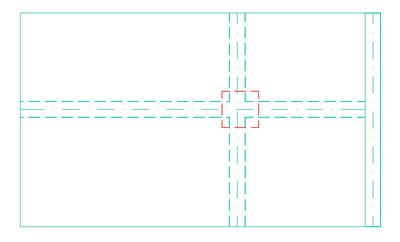

1. The column should be above the beam.
Is the only way to do this by turning off the hidden under slab option for the column?
And changing the column to a hidden line is the only way I can think of.

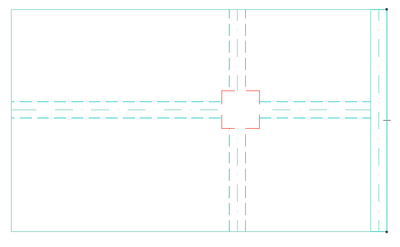

2. I couldn't draw a solid line where the beams meet, even though one of the beams is higher, so I had to draw it as the outline of a slab. Is this correct?



Operating system used: Windows

AC27 on window 11
