Custom Door Panel

Steve Jepson
Virtuoso

‎2014-03-14 08:39 AM - last edited on ‎2023-05-26 11:16 AM by Graphisoft

‎2014-03-14 08:39 AM

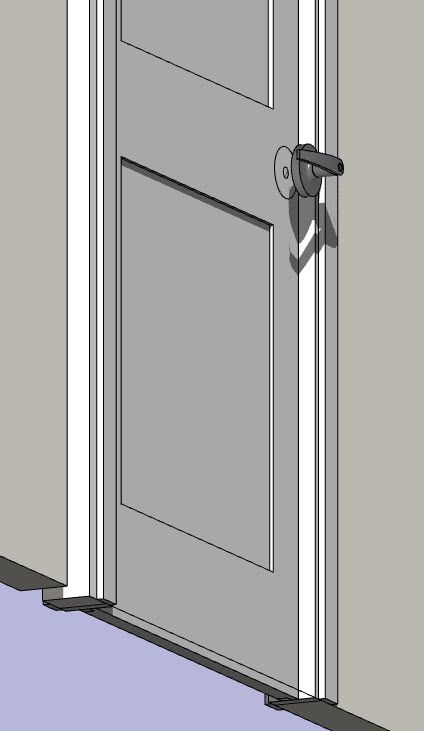

Why are me custom door panels not coming in to the door in the right place ?
If looks fine in the 2d floor plan. See the handle?


ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

Labels:
0 Likes
1 REPLY 1
Barry Kelly
Moderator

‎2014-03-14 09:22 AM

‎2014-03-14 09:22 AM
I think the underside of the slab needs to be a zero (Z) height rather than the top of the slab before you save as a custom door object.
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
0 Likes
