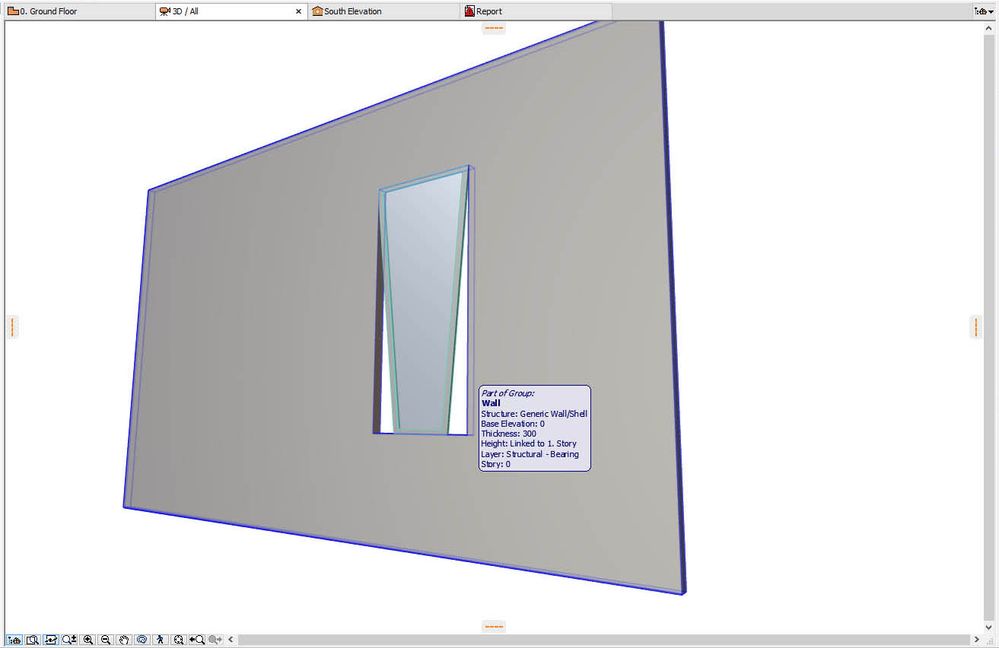

Today I had problem with drawing window. I wanted add formed window to a wall and couldn't find any objects for that form, so try to build a window object and when I done and put it in the wall I surprised. If anybody know how can I have a windows like that please explain it for me.
thanks
2 REPLIES 2

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2015-11-25 02:24 PM
2015-11-25
02:24 PM
disaastudio:
You will need to add a Slab with the ID "wallhole" that defines the shape to be cut out of the wall. In the Help files see: Elements of the Virtual Building > Parametric Objects > Graphic Creation of Custom Library Parts and Components > Saving Custom-Shape Doors or Windows.
You should add a Signature to your Profile (click the Profile button near the top of this page) with your ArchiCAD version and operating system (see mine for an example) for more accurate help in this forum.
David
You will need to add a Slab with the ID "wallhole" that defines the shape to be cut out of the wall. In the Help files see: Elements of the Virtual Building > Parametric Objects > Graphic Creation of Custom Library Parts and Components > Saving Custom-Shape Doors or Windows.
You should add a Signature to your Profile (click the Profile button near the top of this page) with your ArchiCAD version and operating system (see mine for an example) for more accurate help in this forum.
David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC28 USA • Mac mini M4 Pro OSX15 | 64 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
www.davidmaudlin.com
Digital Architecture
AC28 USA • Mac mini M4 Pro OSX15 | 64 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2015-11-28 09:32 AM
2015-11-28
09:32 AM
Thanks alot David.
I'll work on it.
