Doors opening in 3d

sarahric
Contributor
I would like to know if it is possible to have doors open in a 3D view but closed in elevation view. It makes it very difficult to open all the doors when wanting to view in 3D.
ArchiCAD 18/Windows 7/16GB Memory/i5 3.2GHz Processor/NVIDIA GeForce GT 610
6 REPLIES 6
Barry Kelly
Moderator
The answer you don't want to hear is that no you can't with the standard door objects.

And the bit you really don't want to hear is that it would be possible to script an object that does.
But you will be moving away from the standard objects so you will not get the benefits of any future improvements if they change in later updates.
And it won't be easy if you are not familiar with GDL scripting.

Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Anonymous
Not applicable
Barry wrote:
The answer you don't want to hear is that no you can't with the standard door objects.

And the bit you really don't want to hear is that it would be possible to script an object that does...

Barry.

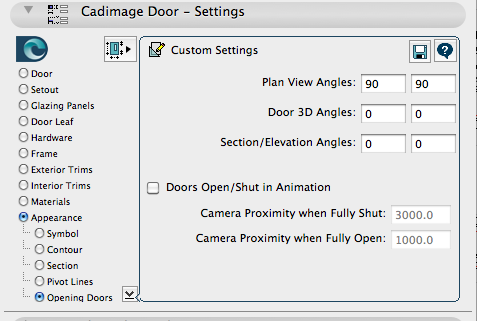

...as Cadimage have done in their doors.
Screen shot 2012-03-23 at 9.01.44 AM.png
sarahric
Contributor
Your right, didn't want to hear that it's more work for me! but is good to know it's possible. Thankyou
ArchiCAD 18/Windows 7/16GB Memory/i5 3.2GHz Processor/NVIDIA GeForce GT 610
Arcadia
Booster
The 4D edge library doors that Ben Cohen does has seperate opening angles for 2D, 3D and elevation.
V12-V27, PC: Ryzen 9 3950X, 64g RAM, RTX5000, Win 11
Ralph Wessel
Mentor
Arcadia wrote:
The 4D edge library doors that Ben Cohen does has seperate opening angles for 2D, 3D and elevation.
That's very interesting. I provided options for the opening angle in 2D and 3D for the modular joinery object, but assumed the door should always be closed in elevations (I've never shown an open door in elevation views before). I'm always wary of adding more options because it can become a bit overwhelming but it would be interesting to have an opinion from other ArchiCAD users as to how useful an opening angle in elevations would be (or a preferred methodology).
Ralph Wessel BArch
Software Engineer Speckle Systems
Barry Kelly
Moderator
Ralph wrote:
Arcadia wrote:
The 4D edge library doors that Ben Cohen does has seperate opening angles for 2D, 3D and elevation.
That's very interesting. I provided options for the opening angle in 2D and 3D for the modular joinery object, but assumed the door should always be closed in elevations (I've never shown an open door in elevation views before). I'm always wary of adding more options because it can become a bit overwhelming but it would be interesting to have an opinion from other ArchiCAD users as to how useful an opening angle in elevations would be (or a preferred methodology).
Most people would probablly want the doors closed in elevation / section views - at least I would.
But at the same time they may want them open in the 3D view while exploring around the model.
That is why it is good to have all 3 options.
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
