Editing Drawing Title

Anonymous · ‎2016-03-09

Hello Archicad Pros

New user here...

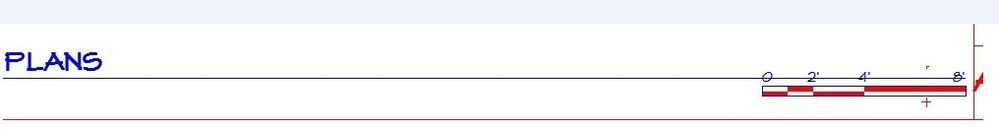

I'm setting up Drawing Titles that have a graphic scale and I am getting this strike through when I add the scale.

Can someone please tell me how to edit and position the scale so that it's not covered up? See attachment.

Thank you.

Steve Jepson · ‎2016-03-09

http://screencast.com/t/pdUOJpxWQUU

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

David Bearss · ‎2016-03-09

Hey yeah, mine started doing that too!

David Bearss
Archicad 28/Windows 11
Alienware 17 R5
i7 2.4 GHz / 16 GB ram

Anonymous · ‎2016-03-09

Thanks so much Steve!
Is the scale something that has to be repeatedly moved like that?
I set up my Title in the favorites and want the scale to be activated in a spot that isnt in the strike.

thanks for your help.

Steve Jepson · ‎2016-03-09

It should stay put as a Favorite.

I would suggest configuring NCS Drawing Title 2 19
Make the Circle Diameter 1/2" instead of the 5/8" default
and set the Link Width to Length Parameter
and show the scale bar.

Just may preference.

http://screencast.com/t/EM1NCrNah
