Geometry in GDL

Anonymous · ‎2016-11-10

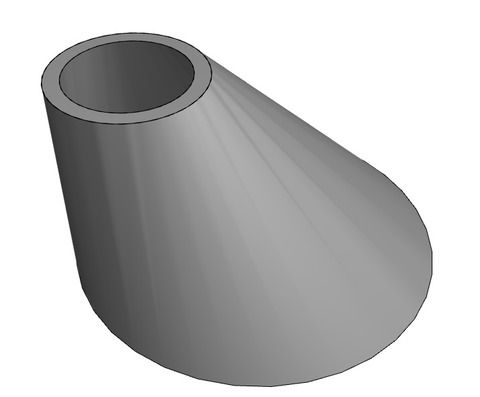

What is the easiest way to do the following geometry in GDL?

The two circle dia and height should be parametric.

It is clear that I need a bigger one and a smaller one than substract with group.
Also I feel ruledsell is too complicated. Any idea?

Bruce · ‎2016-11-10

Ii would try the SWEEP command...see if that does what you want

Bruce Walker
Barking Dog BIM YouTube
Mindmeister Mindmap
-- since v8.1 --
AC27 5060 INT Full | Windows 11 64 Pro | 12th Gen Intel i7-12700H 2.30 GHz | 64 Gb RAM | NVIDIA GeForce RTX 3060 32 Gb

Anonymous · ‎2016-11-10

I have the object you are trying to do:

"Conne (m).gsm" for AC10+ made by arch. Mirco Sorgato from Italy

Anonymous · ‎2016-11-10

andro: Thank you very much!

Bruce: SWEEP rotates the face perpendicular to the connecting points. So the top side would stand in angle.
