Just starting to dabble into GDL.. not to bad, but if you guys could help me short cut one thing:

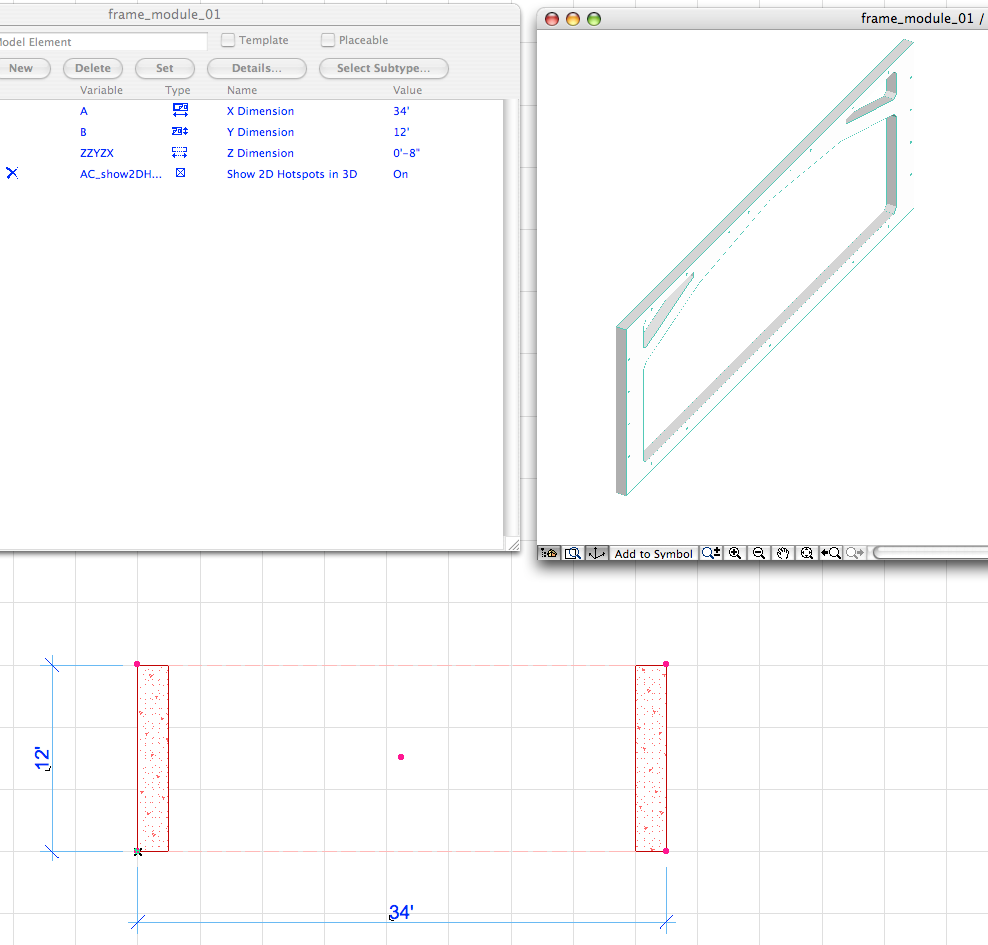

1. Here is a concrete frame I created with slabs
2. I saved as .GSM
3. added the ROTx 90 note to rotate into the vertical direction (see 3D)
4. Here's the question: Now the 2D Plan view (which I redrew to show a concrete footing and dashed overhead frame) stretches out to 12' which I guess is from the original Z direction?? What I want is to just rotate the slab but represent the 2D plan info differently??
Help!!
+pablo
4 REPLIES 4
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-05-12 08:40 PM
2005-05-12
08:40 PM
one more piece of info:
My goal is to represent the frame legs as 8" thick (not 12') as shown..
My goal is to represent the frame legs as 8" thick (not 12') as shown..
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-05-12 11:13 PM
2005-05-12
11:13 PM
figured it out.. FRAGMENT2 ALL,0 .. thanks!
+pablo
+pablo
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-05-13 05:31 AM
2005-05-13
05:31 AM
you could always put this into your 2D script:
~/archiben
hotspot2 0, 0 hotspot2 A, 0 hotspot2 A, B hotspot2 0, B hotspot2 A/2, B/2 project2 3, 270, 2and delete the lines you're drawing directly in the 2D window. this will generate a hidden-line top view of the 3D window to use as the 2D symbol until you're ready to work on the 2D symbol in more detail . . .
