Truss Maker - Top chord angle incorrect

JayGarbarino
Participant

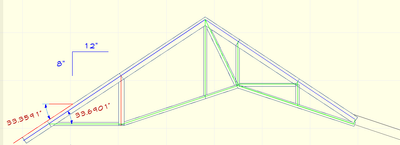

When using the "TrussMaker" tool. I often have issues with the created truss does not have the same pitch angle for the top chord. My 2D line work has the pitch angle as 8:12 (33.6901°). The resulting truss top chord has a pitch angle of 33.3591°.





0 REPLIES 0
