Wanted: Triangular Gable Vent (louver)

Stress Co_ · ‎2005-07-29

Anyone know where I can beg, borrow or steal.... err, I mean purchase, triangular gable vent?

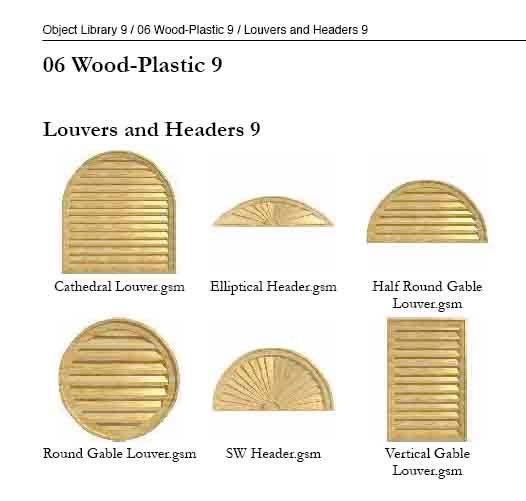

This is what is included in the AC library....

Thanks,
Marc

Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina) //// Mac OS 14.5 (Sonoma)
Processor: 3.6 GHz 8-Core Intel Core i9 //// Apple M2 Max
Memory: 48 GB 2667 MHz DDR4 //// 32 GB
Graphics: Radeon Pro 580X 8GB //// 12C CPU, 30C GPU
ArchiCAD 25 (5010 USA Full) //// ArchiCAD 27 (4030 USA Full)

Anonymous · ‎2005-07-29

under '3d representation' change the resolution to 4 for the half round louver

bill

Stress Co_ · ‎2005-07-29

Thanks Bill. That'll work.

Cheers,
Marc

Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina) //// Mac OS 14.5 (Sonoma)
Processor: 3.6 GHz 8-Core Intel Core i9 //// Apple M2 Max
Memory: 48 GB 2667 MHz DDR4 //// 32 GB
Graphics: Radeon Pro 580X 8GB //// 12C CPU, 30C GPU
ArchiCAD 25 (5010 USA Full) //// ArchiCAD 27 (4030 USA Full)

Stephen Dolbee · ‎2005-07-29

Good tip, Bill. I too, have wanted such an item. Thanks.

Steve

AC19(9001), 27" iMac i7, 12 gb ram, ATI Radeon HD 4850 512mb, OS 10.12.6

Anonymous · ‎2005-07-29

not my idea, djordje came up with it ages ago

bill

TDabney · ‎2005-07-30

Nice one!

TND Architects P.L.L.C.
macOS 12.7
2021 16" MacBook Pro
Apple M1 Max
ArchiCAD 26/27

Djordje · ‎2005-07-31

bill wrote:
not my idea, djordje came up with it ages ago

Thanks for reminding me!

Djordje

ArchiCAD since 4.55 ... 1995
HP Omen

Stress Co_ · ‎2005-08-01

Stress wrote:
That'll work.

I spoke too soon......I can't adjust the angle of the vent (It's fixed at 45 deg) I need to match a 5:12 roof pitch.

....so back to my original query.... anyone know where to obtain an adjustable trianglular gable vent.

(Maybe I should bag the 3D and do a 2D patch on the elevations?)

Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina) //// Mac OS 14.5 (Sonoma)
Processor: 3.6 GHz 8-Core Intel Core i9 //// Apple M2 Max
Memory: 48 GB 2667 MHz DDR4 //// 32 GB
Graphics: Radeon Pro 580X 8GB //// 12C CPU, 30C GPU
ArchiCAD 25 (5010 USA Full) //// ArchiCAD 27 (4030 USA Full)

Anonymous · ‎2005-08-02

"I need to match a 5:12 roof pitch"

ah..

the 'w pentagon fix' in 'special windows' will give you something very close to what you want

just make the 'shoulder height' as small as possible (unfortunately you can't make it zero) and put in lots of horizontal mullions

bill

Anonymous · ‎2005-08-02

forget that

use 'w triangle fix'

bill
