Hello.

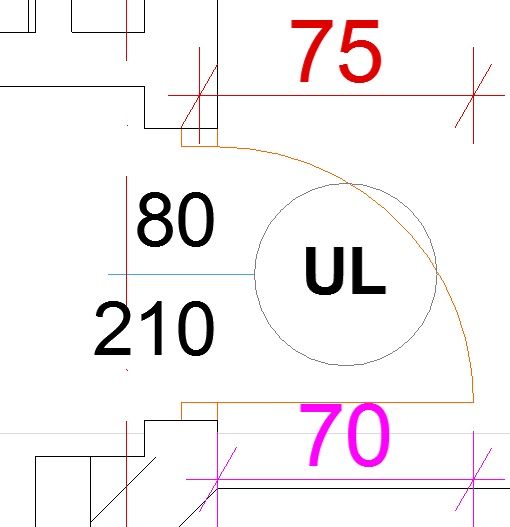

I have an issue regarding a door I am drawing. I would like the red dimension to be 70 cm instead of 75 cm, but I don't seem to find the setting for this. Does anybody know?
Thank you.

8 REPLIES 8
Laszlo Nagy
Community Admin
Community Admin
The image did not upload correctly.
Can you try to upload it again?
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
Erich
Booster
If the dimension in pink is 70 the dimension in red isn't going to be 70 no matter what. Look at where the two dimensions start at the wall.
Erich

AC 19 6006 & AC 20
Mac OS 10.11.5
15" Retina MacBook Pro 2.6
27" iMac Retina 5K
Anonymous
Not applicable
Hello.
Thank you for the answer.
I do not want the two dimensions to be equal and it doesn't matter what becomes of the pink dimensions. All I want is to reduce the red dimension. Is it possible?
Laszlo Nagy
Community Admin
Community Admin
Increase the Frame Width value of the Door by 25 millimeters on both sides.
That will make the egress size 50 millimeters smaller and so the Leaf will be 50 millimeters smaller and your 75 centimetes will become 70.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
Anonymous
Not applicable

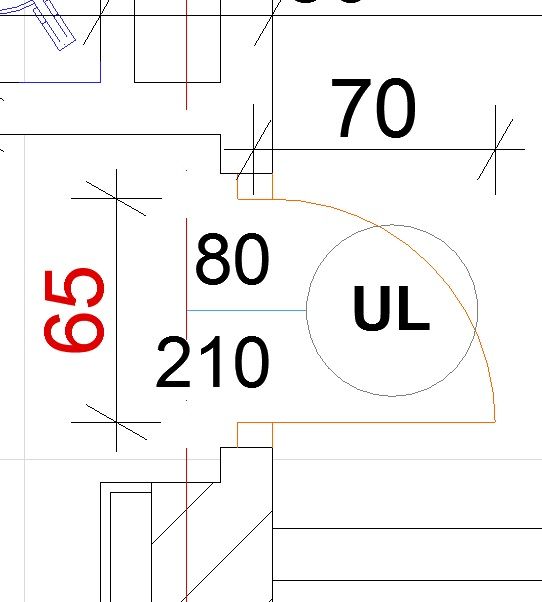

Thank you for the answer. I did what you said and it resulted in this : see picture. But what I wish is for both the black and red dimensions to be 70. I think I want the hinge to be moved by 5 cm, right in the center of the frame.
Laszlo Nagy
Community Admin
Community Admin
This is basic mathematics:
They will be the same only if you set the Frame Thickness value to zero, which is not possible in real life.
So what you are asking for is impossible.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
Anonymous
Not applicable
Thank you anyway.
Anonymous
Not applicable
This is where I chip in and say "with Cadimage doors you can do this".

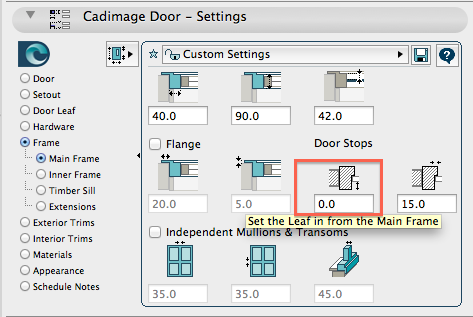

...With Cadimage doors you can set the door leaf back within the frame. (AC16 example, things have moved in AC18 )
Screen Shot 2015-06-15 at 9.30.09 AM.png
