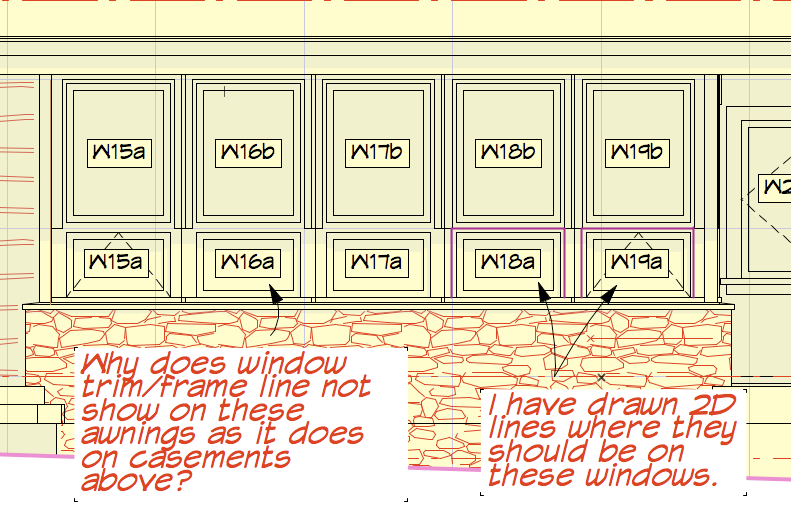

window elevation trim-frame line display

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-12-09
08:00 PM
- last edited on
2023-05-24
12:41 PM
by
Rubia Torres
2008-12-09
08:00 PM
Claire Remsberg
Remsberg Architecture, P.A.
MacBook Pro, OSX 12.6, ArchiCAD v25 (5010)
Remsberg Architecture, P.A.
MacBook Pro, OSX 12.6, ArchiCAD v25 (5010)
3 REPLIES 3

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-12-09 08:41 PM
2008-12-09
08:41 PM
I cannot reproduce this with a W Fixed 12 on top of the W Awning 1 12 (US library). Get the linework in all of the normal scenarios that I tried.

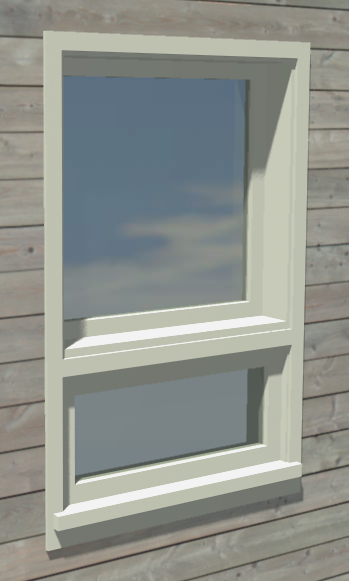

I have the fixed window above set to gang below and the awning set to gang above. After dragging them together on the exterior, the 3D is fine (attached) - although there is an extra horizontal line in the elevation linework, discussed and reported in another thread a few months ago.
The inside, of the vertically ganged windows is not correct though - the vertical casing does not meet - small gap. (Also, the default settings for the vertical casing and the stool are not particularly attractive). Second screenshot (next message).
Karl
I have the fixed window above set to gang below and the awning set to gang above. After dragging them together on the exterior, the 3D is fine (attached) - although there is an extra horizontal line in the elevation linework, discussed and reported in another thread a few months ago.
The inside, of the vertically ganged windows is not correct though - the vertical casing does not meet - small gap. (Also, the default settings for the vertical casing and the stool are not particularly attractive). Second screenshot (next message).
Karl
AC 28 USA and earlier • macOS Sequoia 15.4, MacBook Pro M2 Max 12CPU/30GPU cores, 32GB

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-12-09 08:42 PM
2008-12-09
08:42 PM
Interior ganging glitch...
AC 28 USA and earlier • macOS Sequoia 15.4, MacBook Pro M2 Max 12CPU/30GPU cores, 32GB

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2008-12-09 08:44 PM
2008-12-09
08:44 PM
What do you see in elevation if you vertically separate one set of stacked windows so that they are not touching?
Karl
Karl
AC 28 USA and earlier • macOS Sequoia 15.4, MacBook Pro M2 Max 12CPU/30GPU cores, 32GB
