Advanced modeling tut: create mesh from 2d drawing.

Anonymous
Not applicable
Hello,

I tried to create a mesh from a 2d drawing, following the advanced modeling tutorial. However, the elevation between 0.00/0.00 is incorrect (it should be 11m).

What exactly have I done wrong?

project file: http://www.c4dportal.com/archicad/1.pla


1 REPLY 1
Anonymous
Not applicable
Hi telnoi,

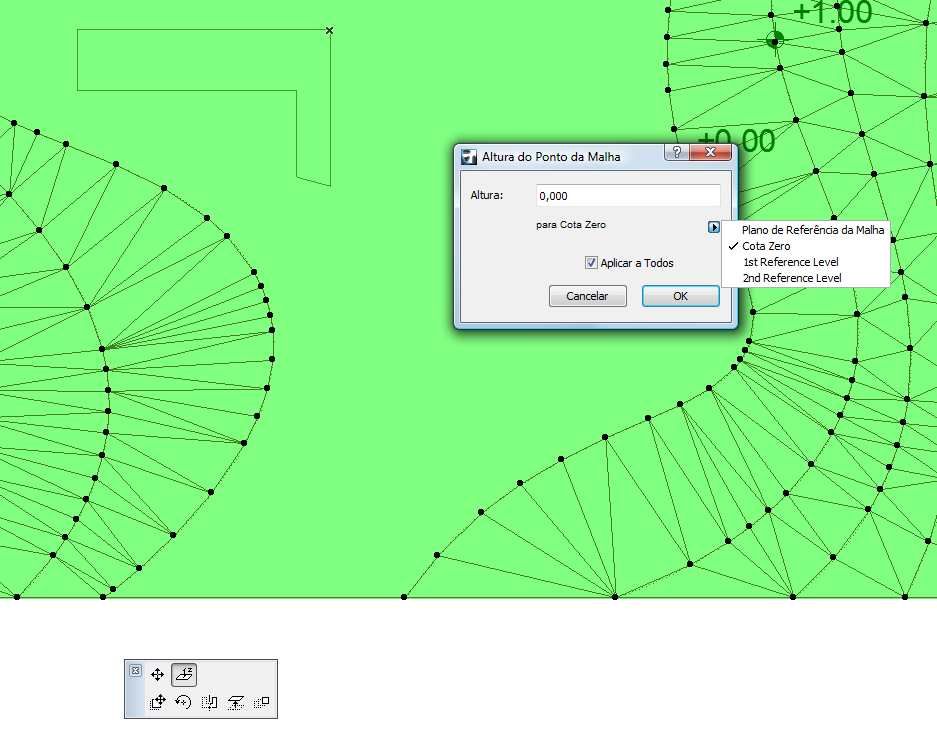

It seems that your mesh is down 11.00 meters from the project zero origin...

also be sure to use the correct reference (small triangle next to the z value in the mesh pet palette) when you input the levels.

Sorry for the shot is not in english.

HTH.
