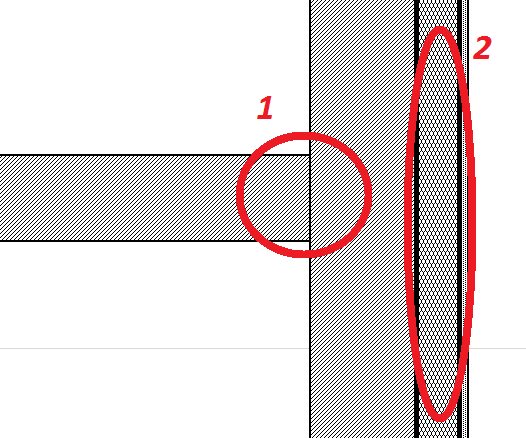

i have 2 problems...

1.
why is there a line between 2 walls? one is composit, the other is comon brick...

2. how to make insulation bigger... just one curve... so if you zoom in, it is almost the same width...

undefined
4 REPLIES 4
Kristen
Contributor
1. this could be a number of reasons:
- is the inner skin of your composite wall the same fill as the wall meeting it (ie. common brick)?
- do you have the same priority on the common brick wall as you do on the skin of the composite wall?
- do you have the same intersection group number on the layer of each wall (if the walls are in different layers)?

2. not sure about this but there is a new function in archicad 13 that has smart insulation if you use custom profiles instead of composite walls but i have not tried this myself
Kristen Broberg
AC 23 SWE Full on Windows 10 Pro
HP Zbook 15 G6 32GB
i7-9850H 2,6GHz
Quadro M2200 2GB
www.liljewall.se
Not applicable
1. priority is the same... they are the same type... the same layers... everything...

BTW... if i put it over the wall to the other site to make it like a cross, then they merge together like they should...
Kristen
Contributor
hmmmm.....maybe the priorities are in the wrong order, otherwise i have no idea
Kristen Broberg
AC 23 SWE Full on Windows 10 Pro
HP Zbook 15 G6 32GB
i7-9850H 2,6GHz
Quadro M2200 2GB
www.liljewall.se
Not applicable
krasek wrote:
1. priority is the same... they are the same type... the same layers... everything...

BTW... if i put it over the wall to the other site to make it like a cross, then they merge together like they should...
That is because Reference lines must meet too.

Regarding insulation display - Check your On Screen View Options (in View menu AC11) - it should be set for Vectorial Hatching to display to scale, otherwise fills show as Bitmap representations and show the same as you zoom in and out.
