Custom Wall Profile/SEO Problem

[Dwight]

In this custom wall profile - vaulted roof with walls, I've trimmed a short segment with SEO slabs into tapered segments for multiplying in an arc.

When assembled, the pieces won't go - there's some kind of SEO trim conflict where little tapered triangles are cut into what should be solid material.

See attached.

Even individually assigning the SEO does not fix it.

[Dwight]

To my amazement, it works in 3D, but straight or curved, my custom profile elements won't make a symbol in the plan.

So I won't be making a wild goose GDL object after all.

Any comment?

[Dwight]

Okay, so the arch custom profile as a beam, tilted to 30 degrees with magic wand set to 1 metre segments. What if?

[__archiben]

Dwight wrote:
What if?

your 'barrel thing' profile canted to 30º and tilted 30º . . .

try orbiting that at speed and then walking in a straight line to the kitchen .
. . looks like the old western movies where the wagon wheels are turning in reverse.

[__archiben]

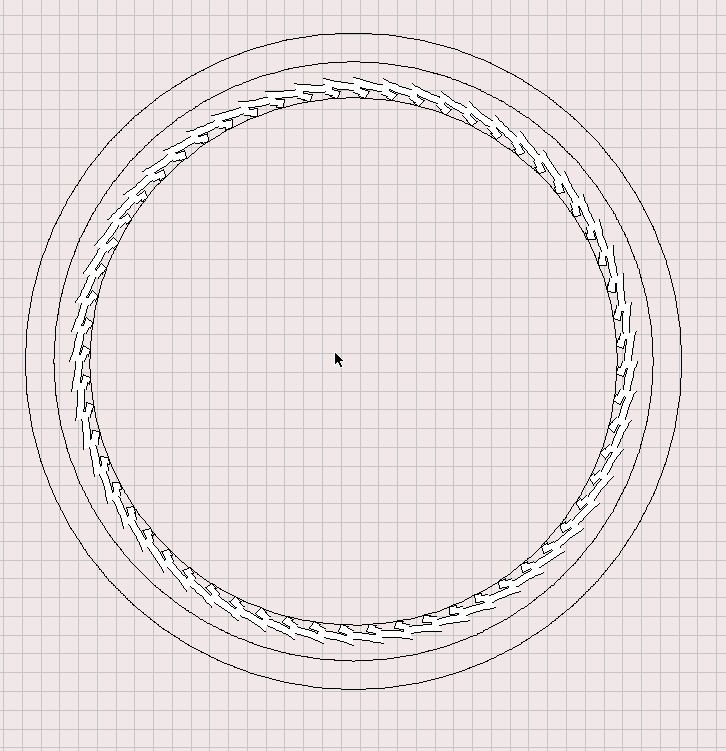

the floor plan representation isn't actually too bad either.

i take it that your floor plan problems earlier weren't resolved using 'automatic' placement and the 'projected'/'projected with overhead' options with the beam's 'entire element'. . ?

[__archiben]

segment....

[__archiben]

back to 'barrel vault'

[Dwight]

Duplicating your settings gets me a symbol in plan. Thanks.

That's a beautiful circle....

[__archiben]

it seems that a beam will only 'cut' for the cut plane if it's inclined . . .

[__archiben]

so much fun it could be friday . . .

[Dwight]

So much fun it could be the World Unity Day Parade.
