Door swing elevation

Inglewood78
Contributor

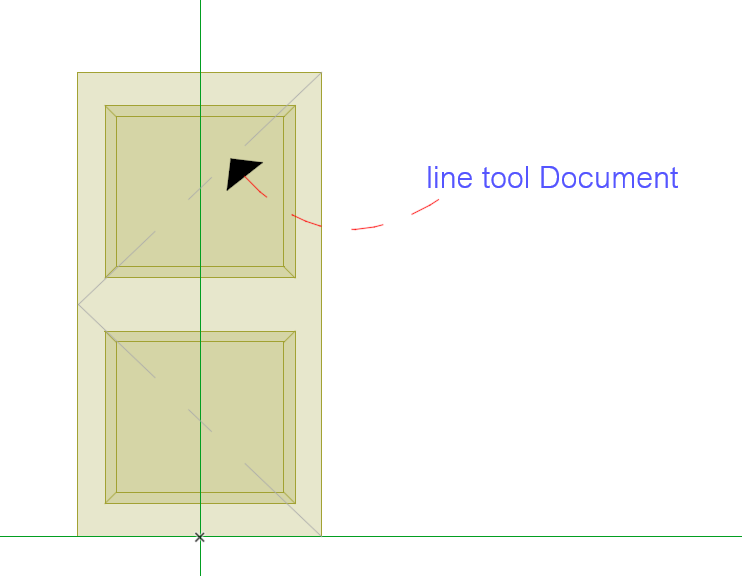

I create door panel and use line tool for door swing elevation.  (panel01)

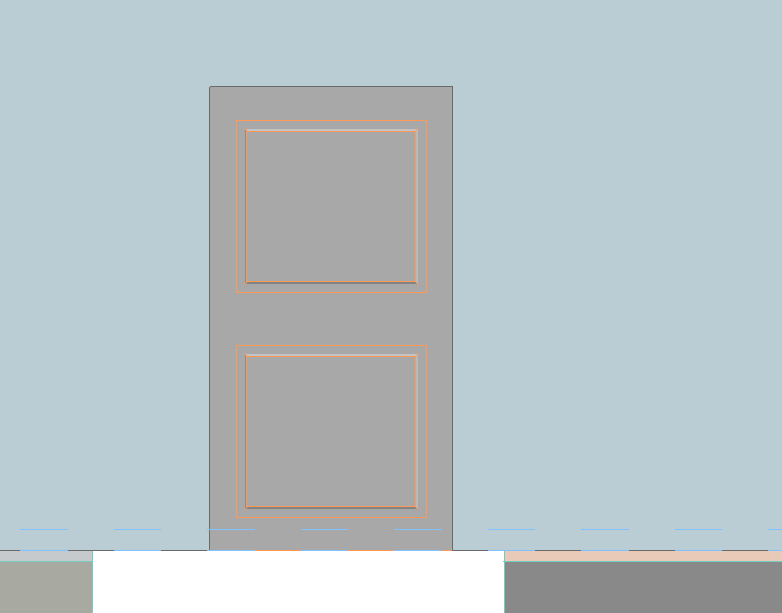

But when i load to project the swing elevation is not show. (panel02)



Do i mistake something?

Thank you everyone for helping.



Operating system used: Windows 11


panel 01.pngpanel 02.png
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

When you save 3D elements as an object, it will only use the 3D elements and not the 2D lines you may have placed in elevation.

If you really want to you could try using 3D morph lines.



However if you save this as a 'custom door leaf', then you can use that custom door leaf in any door object and it will automatically get the door swing from the door object itself.



Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
