Have problem in section and converting to autocad
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2011-06-25
11:45 AM
- last edited on
‎2023-05-25
06:28 PM
by
Rubia Torres
‎2011-06-25
11:45 AM

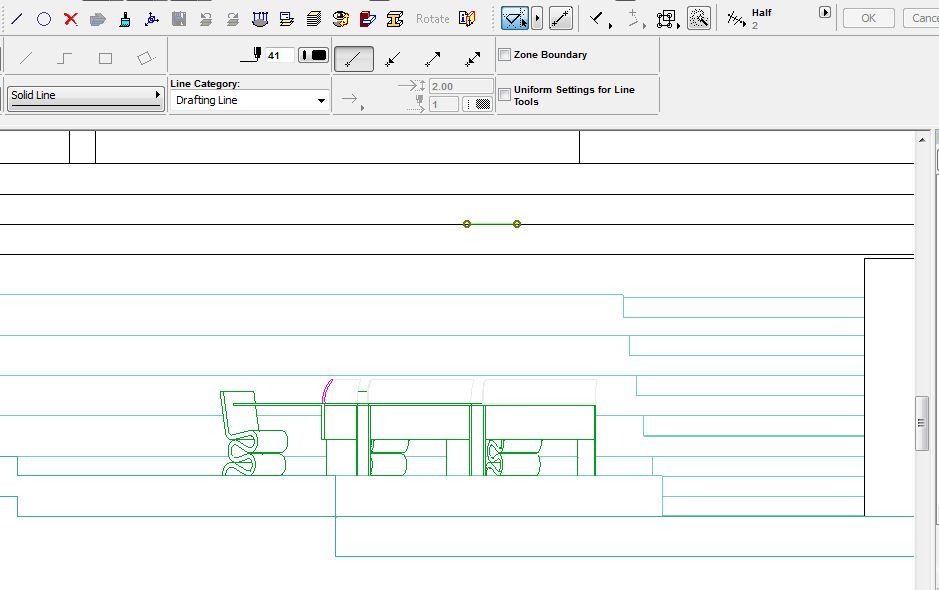

i see line is not a single line but divided which is really problem as you can see in the image
second when i converting it to autocad it convert it with many hatches but i select fill and ctrl+a to delete all fill but this will also delete fill in slabs i did that because file is heavy in autocad with this many fill in sections
please help me
1 REPLY 1
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2011-07-02 08:23 AM
‎2011-07-02
08:23 AM
Is the plan view of those lines a curved element? When converted to Acad curves are rendered as several short lines approximating a curve.
In terms of fills, set the model view to override fills with no fill, save this model view as Export-nofill. Now when you export, it will not have as many fills - maybe none.
Find an Autocad forum, maybe more help on that end.
Snap
In terms of fills, set the model view to override fills with no fill, save this model view as Export-nofill. Now when you export, it will not have as many fills - maybe none.
Find an Autocad forum, maybe more help on that end.
