How to draw this kind of wall?

[Anonymous]

Hi there
I want to know How to draw this kind of wall?
tnx

[Richard Morrison]

It's hard to know if that's an elevation or a cross-section. But you should look at complex profiles (Look for the Profile Manager), in any case.

[Anonymous]

would please explain step by step?

[Richard Morrison]

masoud_s66 wrote:
would please explain step by step?

1) What version of Archicad are you using?

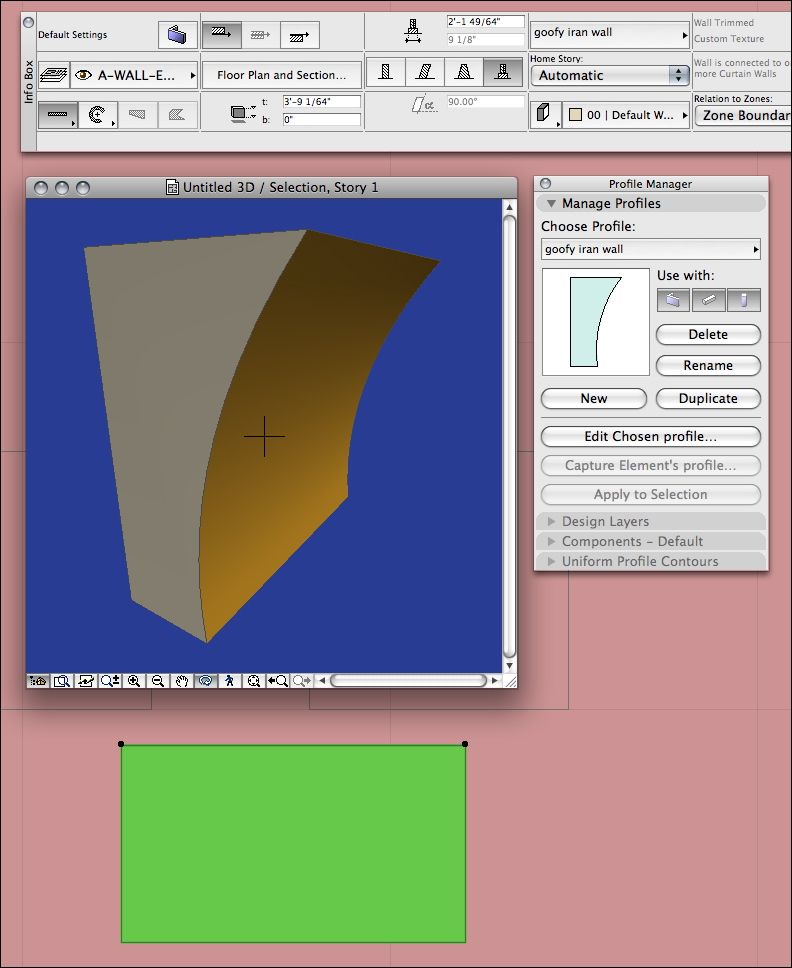

2) Your "Help" file should tell you everything you need to know. Basically, you are going to draw a fill in the shape you want after you go to the Profile Manager, and select "New." You will then be able to select this profile as a wall type.

If you are using AC9 or earlier, you won't be able to do this, though.

[Anonymous]

thanx for your attention
I use archicad 12
woul you please help me more about it

[Dwight]

Search the forum for "complex Profile.
See your reference manual.

[Anonymous]

would u please explain more,I get confused,please explain step by step

[Dwight]

I am very happy to help you.

But it is a bad sign regarding user aptitude when you are unwilling to search forum resources on your own, regardless of whether you get easily confused or not.

Your resources are:

• The Reference Manual accessed through your Help Menu
• Searching the Archicad Forum using the "Complex Profile" term supplied
• Seeing the Archicad Wiki,[link at upper left of this page] an encyclopedia of Archicad Knowledge. Searching this resource finds the following article by our expert colleague Eric Bobrow:

http://www.archicadwiki.com/Creative%20Uses%20of%20Complex%20Profiles

If you study these things you will not be confused any longer.

[Anonymous]

[Anonymous]

I did read all of them,but I cant do it now,please explain how can I do it step by step
