Missing reveal lines

DGSketcher
Legend

‎2015-12-08 11:45 AM - last edited on ‎2023-05-24 08:45 AM by Graphisoft

‎2015-12-08 11:45 AM

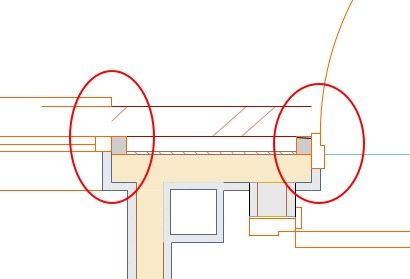

My current project uses complex wall profiles which are not showing the reveal lines. They are present on solid or composite wall types with the same openings. The outer leaf is brick so there are no finishes to return at the reveal. Can anyone else concur that they are not displaying?

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
Labels:
0 Likes
1 REPLY 1
DGSketcher
Legend

‎2015-12-08 06:13 PM

‎2015-12-08 06:13 PM
Fixed: Found the little tick box in the complex profile settings panel to "Show Cut End Lines"
Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
0 Likes
