Sliding Stacking Frameless Doors

[MJScheltema]

Hi Everyone,

I am trying to model doors into a project.

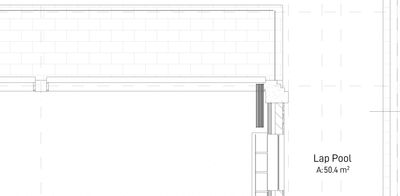

Here is an example of the door typology:

I have attempted to use the OOTB doors, Cadimage and the Curtain wall tool. Has anyone had success with this door type?

I am working on this project in AC27 currently.

Operating system used: Windows 11

  

[Barry Kelly]

Barry.

[MJScheltema]

Thanks to Everyone for their replies. The best options so far have been "Faking it" with a Cadimage Bi-fold door and Yves Curtain wall.

For everyone who is asking about the security and weather sealing, I am adding a link to the generic product brochure if you are interested.

The system has an optional weather seal attached to the panels' sides.

*Edited typo

[MJScheltema]

I have added the product brochure in a comment for you mthd.

[MJScheltema]

Hi Barry,

It's going to be used in a few different applications.

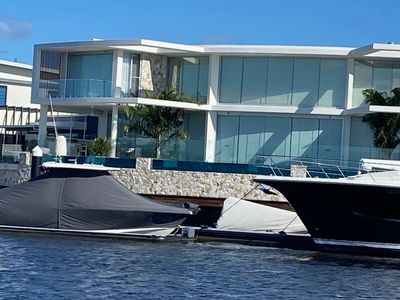

Here is an example from another project. I didn't design this one, however, it is near my project site and uses the same system.

The lower glazing opens completely, as do the balconies. The upper middle system is fixed.

 

[MJScheltema]

Hi Mate,

Yes, long time no see.

  

I have ended up using the Cadimage door. It looks passable. I can open it completely or close it completely, and it works.

I will make up the rest in scheduling and specification. It's good enough for rendering, and then I can use the model view options and Twinmotion direct link.

At least this way I can manipulate my schedules easily also.

[MJScheltema]

Hi Mate,

I didn't go down this road. It would've taken too much time in my view.

[MJScheltema]

I tried these library parts, but the Cadimage one ended up being more flexible. Thank you.

[mthd]

Cheers ! I am glad CI tools could be used to represent them even though not perfect. CI are the GDL experts and they could build a library object for us all. I understand that they give an unobstructed view to the outside. “Frameless” to a degree with the vertical parts removed. I see why they are popular.

[Lingwisyer]

Yeah, I saw those images, but it is not super clear how it engages, especially for the initial swing panel. The glazing seals just look like a H profile in a hard rubber but to get a good seal you would need a good contact between it and the receiving panel, which would inturn make it harder to operate.

[ryejuan]

curious about the clear weather seal will it go yellow over time?
