Weird roof projection

Foti
Enthusiast

Hello

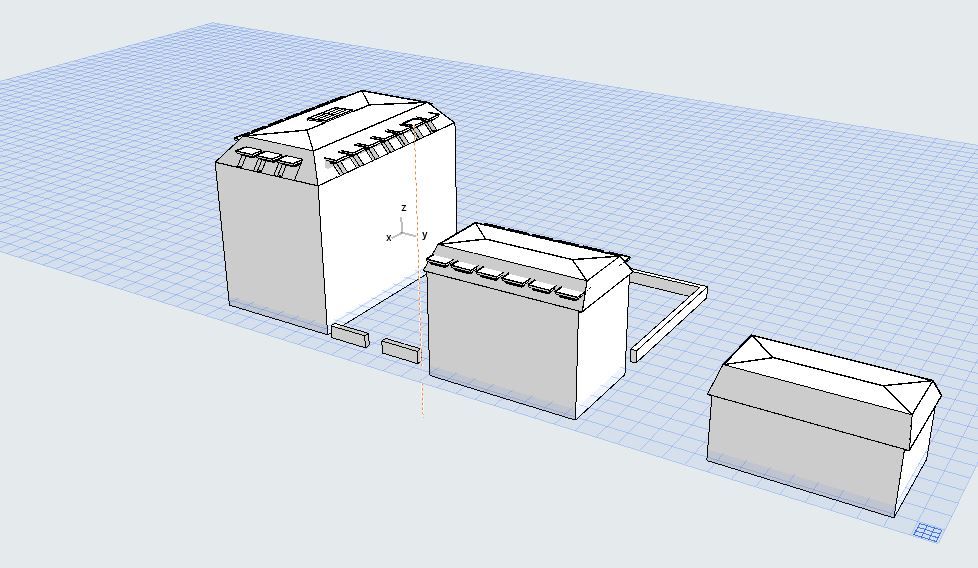

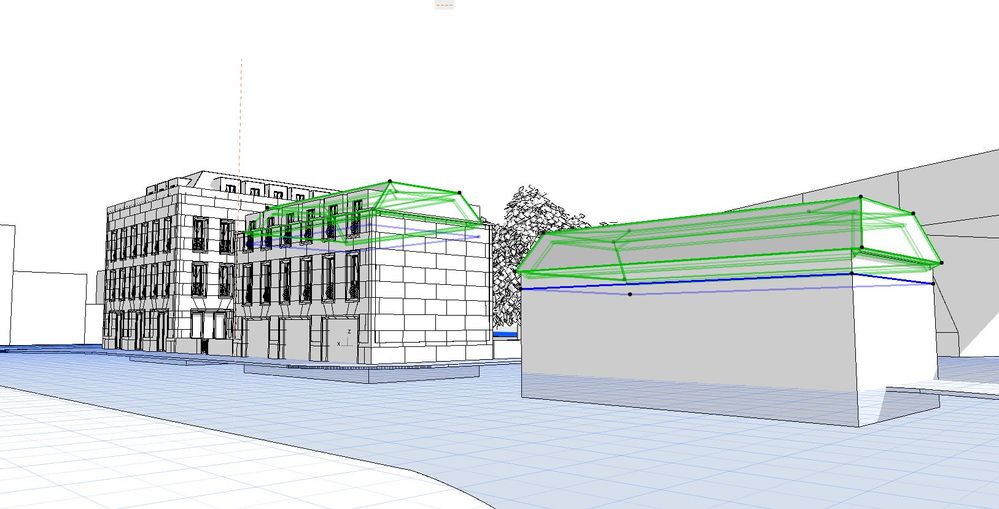

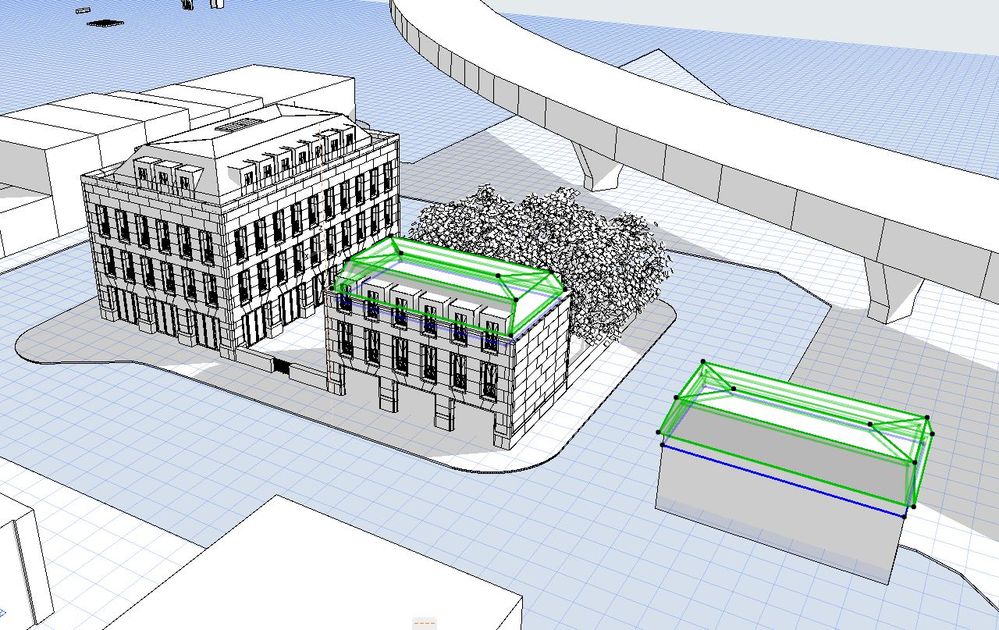

Was cleaning up my model and I kept noticing some weird volumes that I couldn't select, finally found the source, but i have never seen this before. I use the roof tool to make the roofs, I didn't notice this before but it seems the roof projects the perimeter volume down pasted the editing plane. Ill attach a video and some images.


roof 1.JPGroof 2.JPGroof 3.JPG
Foti B.

AC25
PC Precison 5760, Xeon 11955, 64GB, Nvidia RTX A3000
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

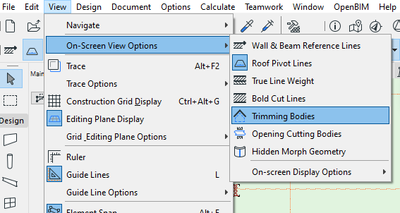

That looks like you have the trimming bodies turned on.

It is an on-screen view option.

It will affect only what you see on screen, not any outputs (prints).








Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

3 REPLIES 3
Solution
Barry Kelly
Moderator

That looks like you have the trimming bodies turned on.

It is an on-screen view option.

It will affect only what you see on screen, not any outputs (prints).








Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

That was a rookie mistake, 😞 not even sure when or how I may have turned it on. What would be the purpose of that projected body?

Foti B.

AC25
PC Precison 5760, Xeon 11955, 64GB, Nvidia RTX A3000

@Foti wrote:

What would be the purpose of that projected body?


So you can see what will or won't be affected when you use the 'Connection > Trim' option to trim walls to the roof.
